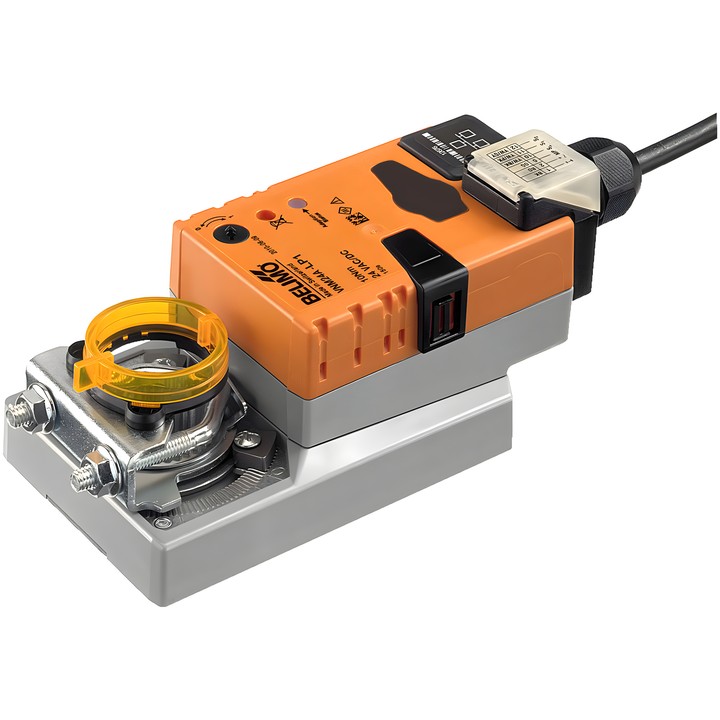

Belimo VNM24A-LP1 - rotary actuator for dampers

Name: Belimo VNM24A-LP1 - rotary actuator for dampers
Brand: Belimo
SKU: VNM24A-LP1
Price: 2867.04 PLN
Availability: BackOrder

Belimo

zł2,867.04

VAT included

zł2,330.93 tax excluded

Belimo VNM24A-LP1 rotary actuator for dampers, without safety function, with a torque of 10 Nm and AC/DC 24 V supply. Supports Cloud, BACnet/IP and Modbus TCP, as well as hybrid operation with an analogue control signal.

Motor running time is 150 s / 90° (adjustable 43...173 s). The mechanical connection is a universal clamp 8...26.7 mm.

Delivery in approx. 14 days

Belimo VNM24A-LP1 – actuator for dampers

Rotary actuator without safety function, designed for air dampers with an area of up to approx. 2 m². Enables communication-based control via Cloud, BACnet/IP or Modbus TCP. In hybrid mode, the control signal is analogue, while the communication interfaces are used for data exchange.

Key features and technical data

Torque: 10 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Y operating range: 2...10 V; variable range: 0.5...10 V.
Motor running time: 150 s / 90°; adjustable: 43...173 s.
Rotation angle: 95°, with adjustable mechanical stops on both sides.
Direction of movement selected by 0/1 switch; manual override by push-button with locking option.
Universal clamp 8...26.7 mm; mechanical position indicator.
Ethernet connection via RJ45 socket; Ethernet 10/100 Mbit/s, TCP/IP and integrated web server.
Can connect two sensors and convert their signals for transmission to a higher-level system.
Power consumption during movement: 4.5 W; in standby position: 1.4 W; for cable sizing: 6.5 VA.
Power and control connection: 1 m cable, 6x 0.5 mm²; IEC/EN protection rating: IP40; ambient temperature: -30...50°C [-22...122°F].
