Belimo SMQ24G-MF - actuator for dampers

Belimo SMQ24G-MF - actuator for dampers

Belimo
zł2,547.86
VAT included
zł2,071.43 tax excluded

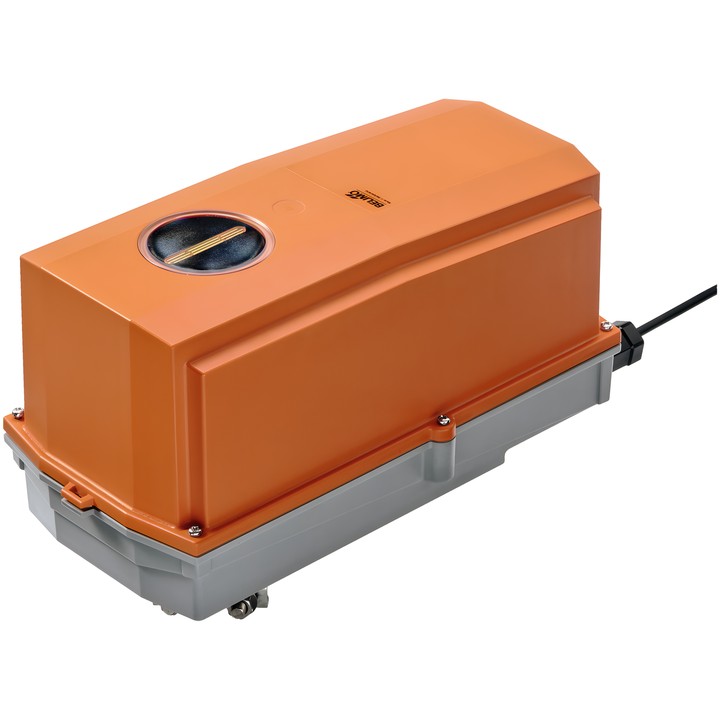

Configurable rotary actuator for dampers, with a torque of 16 Nm and AC/DC 24 V power supply. Modulating control 2...10 V and position feedback signal 2...10 V are configurable.

Running time is 7 s / 90° and can be set within the range 7...35 s. The actuator has an IP66/67-rated enclosure.

Delivery in approx. 14 days
Share

Belimo SMQ24G-MF – actuator for dampers

Configurable rotary actuator designed for damper control in HVAC systems, comparable industrial installations and building services systems. According to the technical datasheet, it is intended for air dampers with an area of up to approx. 3.2 m².

Key features

  • Torque: 16 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V. The ranges can be configured.
  • Motor running time: 7 s / 90°; adjustable running time: 7...35 s.
  • Rotation angle: max. 95°, with adjustable mechanical stops; minimum permitted rotation angle: 30°.
  • Direction of movement selected by a 0/1 switch; manual adjustment by button, with the option of locking beneath the protective cover.
  • Universal shaft clamp 12...26.7 mm and mechanical position indicator.
  • Connection: 1 m cable, 4x 0.75 mm², halogen-free.
  • Power consumption: 15 W during operation and 2 W in the idle position; sizing power: 26 VA.
  • IEC/EN protection rating: IP66/67; ambient temperature: -30...40°C [-22...104°F].

Parameters can be changed using Belimo Assistant 2 or ZTH EU. When the power supply is first switched on, the actuator adapts to the mechanical travel range.

  • Brand
    Belimo
  • Reference
    SMQ24G-MF
  • EAN13
    7630498122163

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    15 W
  • Power consumption (holding)
    2 W
  • Rated power
    26 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Button, lockable (under protective cover)
  • Running time (motor)
    7 s / 90°
  • Variable motor running time
    7...35 s
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Torque
    16 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 12...26.7 mm

Techniczna karta katalogowa

Download (2.22MB)

Instrukcja montażu

Download (975.58KB)

EU Declaration of Conformity – SMQ24G-MF

Download (32.73KB)

Environmental Declaration – SMQ..

Download (72.57KB)
