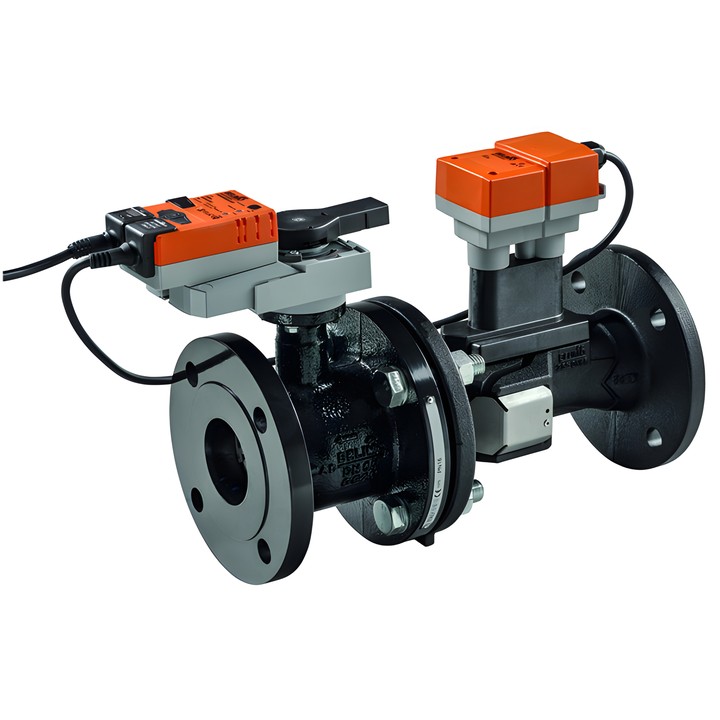

Belimo EP080F+MOD - 2-way EPIV control ball valve

Name: Belimo EP080F+MOD - 2-way EPIV control ball valve
Brand: Belimo
SKU: EP080F+MOD
Price: 14613.38 PLN
Availability: BackOrder

Belimo

zł14,613.38

VAT included

zł11,880.80 tax excluded

Belimo EP080F+MOD is a 2-way EPIV control ball valve with measurement and electronic flow control independent of pressure changes. The DN 80 model has a PN 16 flanged connection and a nominal flow rate V'nom of 11 l/s.

The device is powered by AC/DC 24 V. It supports BACnet MS/TP, Modbus RTU, MP-Bus and analogue control.

Delivery in approx. 14 days

Belimo EP080F+MOD – DN 80 EPIV control valve

This 2-way ball valve with actuator and measuring tube featuring an ultrasonic flow meter is designed to control water flow in closed-loop water systems. The documentation specifies use in air handling unit circuits and heating systems.

Key features and specifications

Connection: flange, DN 80, PN 16.
Nominal flow rate V'nom: 11 l/s; adjustable V'max: 30...100% V'nom.
Power supply: AC/DC 24 V; power consumption during operation: 6 W.
Communication: BACnet MS/TP, Modbus RTU (factory setting), MP-Bus; operating range Y: 2...10 V.
Fluid: water, water with a maximum of 50% vol. glycol; fluid temperature: -10...120°C [14...248°F].
Pressure difference: ∆pmax 340 kPa; closing pressure: ∆ps 690 kPa.
Flow characteristic: equal-percentage, with the option to switch to linear.
Permissible leakage: bubble-tight, leakage rate class A (EN 12266-1).
Enclosure protection rating: IP54.

Installation is permitted from vertical to horizontal relative to the spindle; the valve must not be installed with its axis pointing downwards. The flow direction must match the arrow on the housing.
