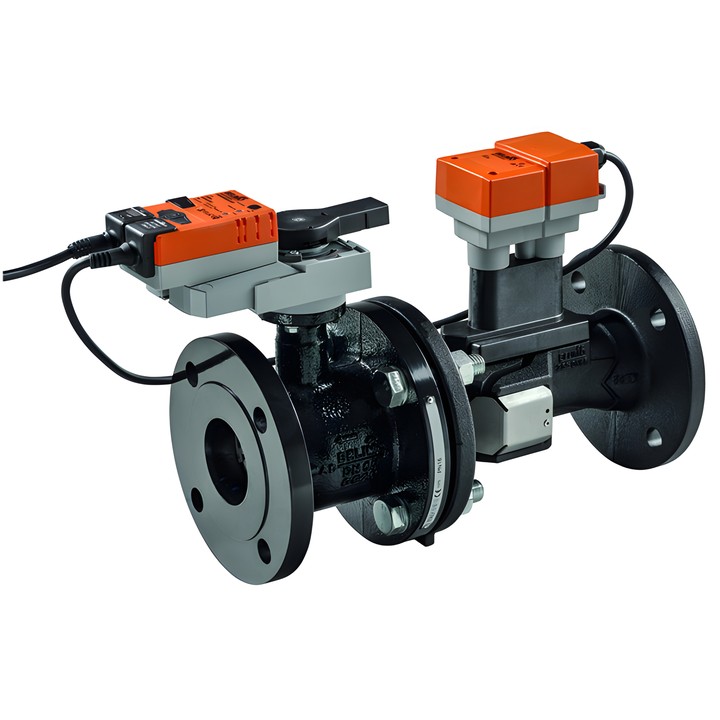

Belimo EP125F+MOD - 2-way EPIV control ball valve

Name: Belimo EP125F+MOD - 2-way EPIV control ball valve
Brand: Belimo
SKU: EP125F+MOD
Price: 24867.45 PLN
Availability: BackOrder

Belimo

zł24,867.45

VAT included

zł20,217.44 tax excluded

2-way EPIV control ball valve with electronic flow control independent of pressure fluctuations. The DN 125 version with PN 16 flanged connection has a nominal flow rate V'nom 31 l/s and is designed for closed-loop water systems.

AC/DC 24 V power supply; communication via BACnet MS/TP, Modbus RTU or MP-Bus, as well as conventional control.

Delivery in approx. 14 days

Belimo EP125F+MOD – EPIV control valve

2-way ball valve with electronic flow control independent of pressure fluctuations. The device consists of a control valve, a measuring tube with flow meter and an actuator. It is designed for closed-loop water systems, including flow control in air-handling unit circuits and heating systems.

Key features and specifications

Nominal diameter DN 125; PN 16 flanged connection.
Nominal flow rate V'nom 31 l/s; adjustable V'max 30...100% V'nom.
Medium: water or water with max. 50% vol. glycol; medium temperature -10...120°C [14...248°F].
Pressure differential ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Power supply AC/DC 24 V; operating range Y 2...10 V.
Communication via BACnet MS/TP, Modbus RTU (factory setting) and MP-Bus; conventional control and hybrid operation are also possible.
Ultrasonic flow measurement; equal-percentage flow characteristic, switchable to linear.
Permissible leakage: bubble-tight, leakage rate class A (EN 12266-1).

Mounting position: from vertical to horizontal in relation to the spindle; mounting with the axis pointing downwards is not permitted. The flow direction must match the arrow on the housing.
