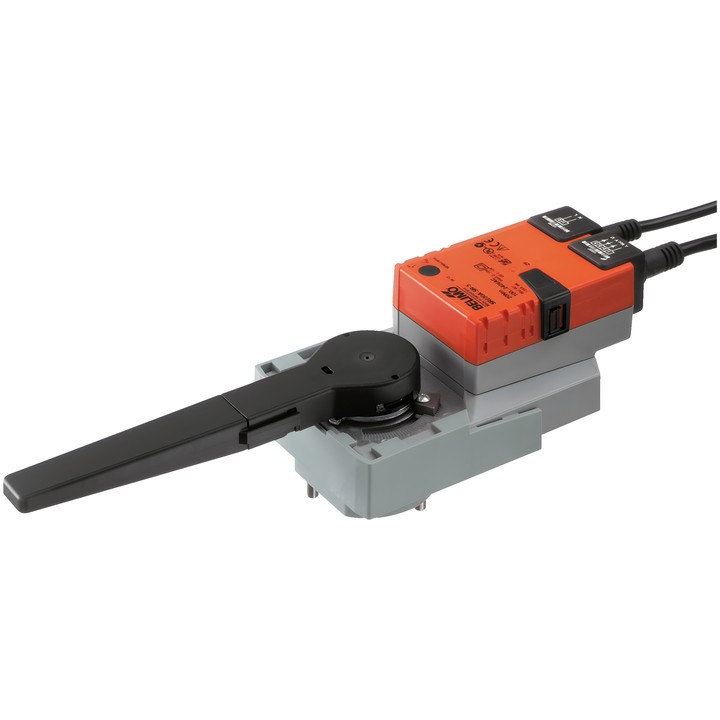

Belimo SR230A-SR-5 - rotary actuator for valves

Name: Belimo SR230A-SR-5 - rotary actuator for valves
Brand: Belimo
SKU: SR230A-SR-5
Price: 1221.06 PLN
Availability: BackOrder

Belimo

zł1,221.06

VAT included

zł992.73 tax excluded

Belimo SR230A-SR-5 rotary actuator for rotary valves and dampers. Torque 20 Nm, AC 100...240 V power supply and 2...10 V modulating control.

Travel time is 90 s / 90°. The actuator has a 2...10 V position feedback signal, manual adjustment by push button and IP54 protection rating.

Delivery in approx. 14 days

Belimo SR230A-SR-5

Rotary actuator for rotary valves and dampers, controlled by a Y signal. The U feedback voltage is used for electrical indication of the valve position.

Key features and specifications

Torque: 20 Nm; power supply: AC 100...240 V, 50/60 Hz.
Modulating control: 2...10 V; position feedback signal: 2...10 V.
Travel time: 90 s / 90°; constant travel time, independent of load.
Power consumption during operation: 4 W; at rest: 1 W; for cable sizing: 7.5 VA.
Manual adjustment by push button with the option to lock it.
Mechanically adjustable rotation angle and integrated mechanical position indicator.
F05 connection flange; IEC/EN IP54 protection rating; IEC/EN protection class II, reinforced insulation.
Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
Ambient temperature: -30...50°C.
