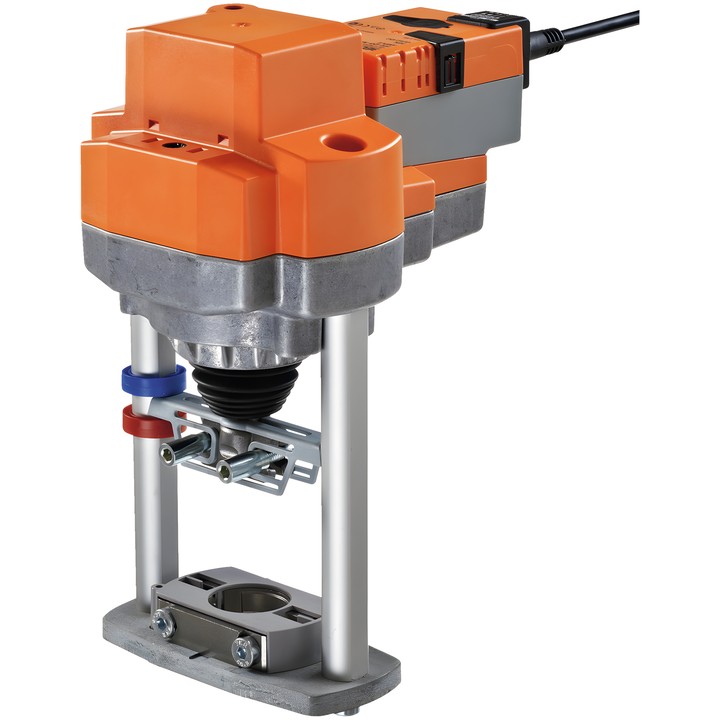

Belimo RV24A-MF - linear actuator for globe valves

Name: Belimo RV24A-MF - linear actuator for globe valves
Brand: Belimo
SKU: RV24A-MF
Price: 4073.54 PLN
Availability: BackOrder

Belimo

zł4,073.54

VAT included

zł3,311.82 tax excluded

Configurable linear actuator for 2-way and 3-way globe valves. Force 4500 N, AC/DC 24 V supply, modulating control 2...10 V and 50 mm stroke.

Running time is 150 s / 50 mm. The actuator has a 2...10 V position feedback signal and manual override by push-button, which can be locked.

Delivery in approx. 14 days

Belimo RV24A-MF – actuator for globe valves

Configurable actuator designed for 2-way and 3-way globe valves. The analogue control signal Y determines the actuator position, while the feedback voltage U provides an electrical indication of position.

Key specifications

Actuator force: 4500 N; stroke: 50 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Modulating control: 2...10 V; position feedback signal: 2...10 V.
Running time: 150 s / 50 mm; adjustable running time: 90...150 s.
Power consumption during operation: 6 W; in the resting position: 1.5 W; for cable sizing: 11 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

Operation and configuration

Manual override is performed using a push-button that can be locked. The actuator adapts the range when first powered on; adaptation can also be started using the push-button or Belimo Assistant 2. Parameters can be configured using Belimo Assistant 2 or ZTH EU.
