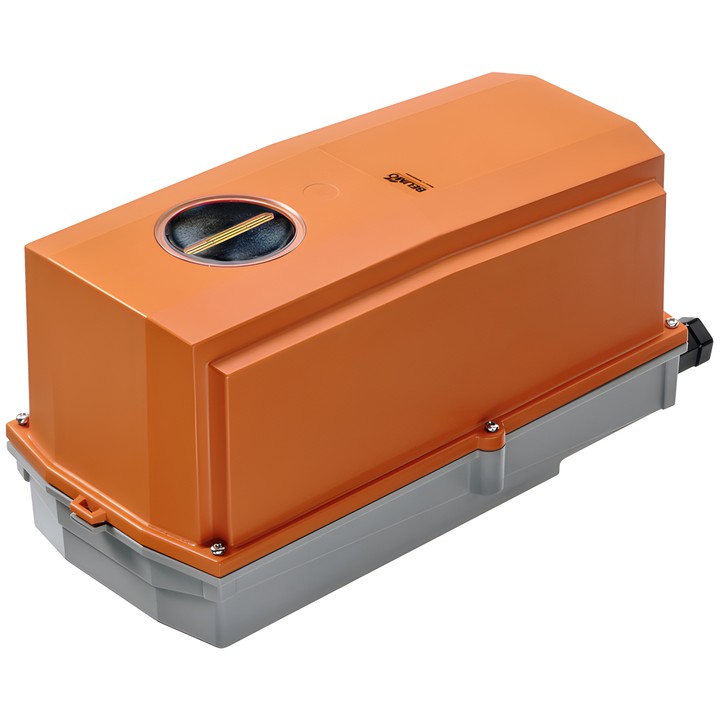

Belimo GRC24G-SZ-T-5 - Rotary actuator for valves

Belimo GRC24G-SZ-T-5 – rotary actuator

Actuator designed for rotary valves and dampers in stationary heating, ventilation and air-conditioning systems. The control signal Y determines the actuator position, while the feedback voltage U is used for electrical indication of the valve position.

Key features and specifications

• Torque: 40 Nm; operating time: 35 s / 90°.
• Rated voltage: AC/DC 24 V; voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
• Control range Y: 0.5...10 V; position feedback signal U: 0.5...10 V.
• Power consumption in operation: 8 W; at rest: 2.5 W; sizing power: 11 VA.
• Power and control connection: 4 mm² terminals (cable ø4...10 mm, 4-core).
• Degree of protection: IP66/67; NEMA 4X; UL Enclosure Type 4X housing.
• Mounting flange: F05. Mounting orientation relative to the valve can be selected in 90° increments.
• Manual adjustment by push-button with lock option; the housing cover must be removed for operation.
• Adjustable rotation angle with mechanical end stops; standard setting: 0...90°.
• Overload protection and automatic stop when an end stop is reached.

The actuator is also designed for outdoor applications where it may be exposed to rain, snow, dust and UV radiation, among other conditions. The ambient temperature specified in the technical data sheet is -30...50°C.
