Belimo 22DT-12H - duct/immersion temperature sensor

Belimo 22DT-12H - duct/immersion temperature sensor

Belimo
zł304.84
VAT included
zł247.84 tax excluded

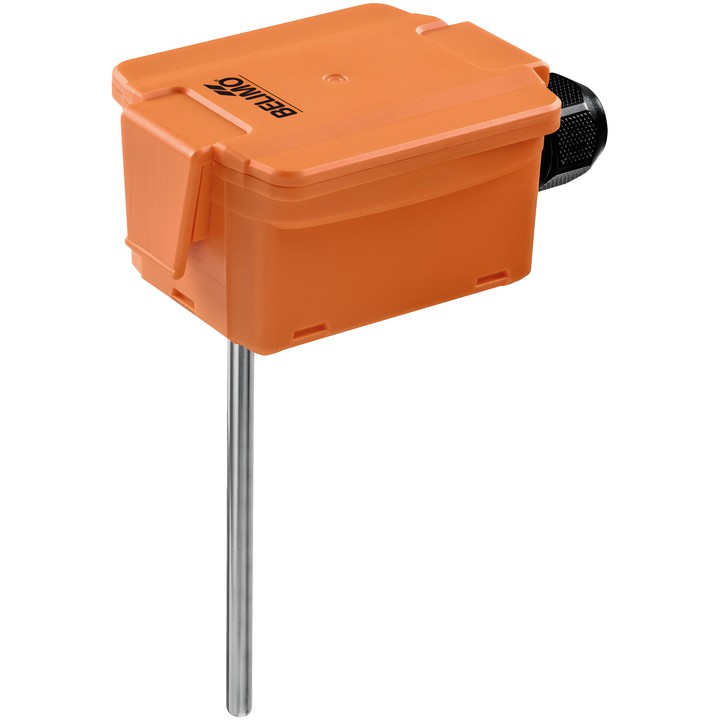

Active temperature sensor for measurement in ducts, with a probe 50 mm long and 6 mm in diameter. AC/DC 24 V supply; 0...5 V or 0...10 V output signal, adjustable via jumper.

When combined with a brass or steel thermowell, it can also be used to measure temperature in pipework. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22DT-12H temperature sensor

Active sensor for measuring temperature in ducts. When combined with a stainless steel or brass thermowell, it is also suitable for use in pipework.

Key features

  • Measured value: temperature; sensing element based on Pt1000 class AA.
  • Probe length: 50 mm; probe diameter: 6 mm; probe material: V4A (1.4404).
  • Rated voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V; min. resistance 5 kΩ. 0...5/10 V signal adjustable via jumper.
  • 8 selectable measuring ranges; jumper-set ranges extend from -50...50°C (S0) to 0...250°C (S3).
  • Temperature measurement accuracy: ±0.5°C @ 21°C when range S2 and S4 is selected.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable terminal block with spring terminals, max. 2.5 mm².

Note: the maximum measuring range does not define the permissible medium temperature. The medium temperature specified in the data sheet is -50...160°C.

  • Brand
    Belimo
  • Reference
    22DT-12H
  • EAN13
    7630498101052

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    0...5 V 0...10 V
  • Probe length
    50 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 5 kΩ

Techniczna karta katalogowa

Download (1.47MB)

Instrukcja montażu

Download (1.19MB)

Techniczna karta katalogowa – 22DT-12..

Download (1.47MB)

EU Declaration of Conformity – 22DT-12H

Download (39.95KB)

Environmental Declaration – ..DT..

Download (70.29KB)
