Belimo 22DT-12R - duct and immersion temperature sensor

Belimo 22DT-12R - duct and immersion temperature sensor

Belimo
zł326.17
VAT included
zł265.18 tax excluded

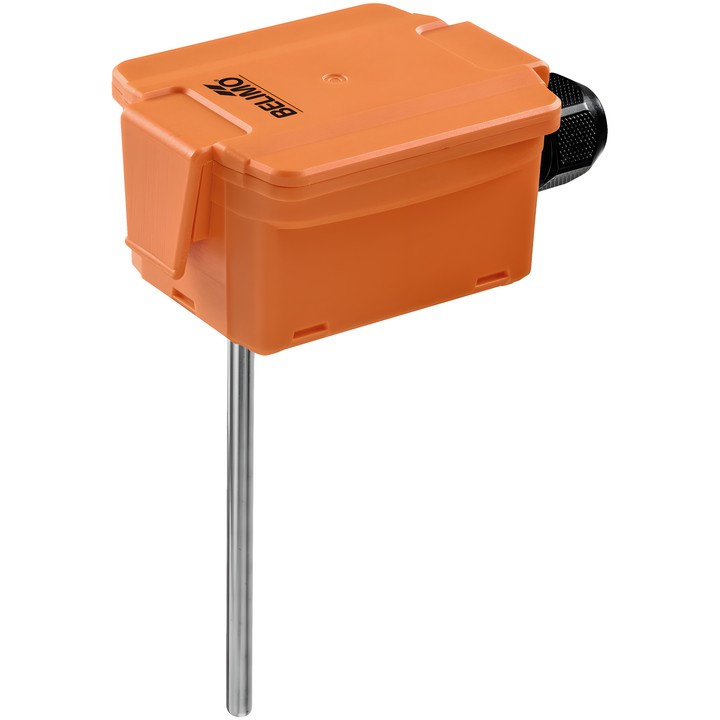

Active Belimo 22DT-12R temperature sensor for measurement in ducts. When combined with a stainless steel or brass immersion sleeve, it can also be used in pipe systems.

AC/DC 24 V supply, with a jumper-selectable output signal of 0...5 V or 0...10 V. The probe is 300 mm long and has a diameter of 6 mm.

Delivery in approx. 14 days
Share

Belimo 22DT-12R – temperature sensor

Active sensor for measuring temperature in ducts. Use in pipe systems requires connection to a stainless steel or brass immersion sleeve.

Key technical data

  • Measured variable: temperature; sensing element based on Pt1000 class AA.
  • Nominal voltage: AC/DC 24 V.
  • Output signal: 1 x 0...5 V, 0...10 V, min. resistance 5 kΩ; select 0...5/10 V using a jumper.
  • 8 selectable measuring ranges: S0 -50...50°C, S1 -10...120°C, S2 0...50°C, S3 0...250°C, S4 -15...35°C, S5 0...100°C, S6 -20...80°C, S7 0...160°C. The measuring range does not define the permissible medium temperature.
  • Temperature measurement accuracy: ±0.5°C @ 21°C with range settings S2 and S4.
  • Probe: length 300 mm, diameter 6 mm; material V4A (1.4404).
  • Housing protection rating: IP65 / NEMA 4X.
  • Electrical connection: pluggable spring-loaded terminal block, max. 2.5 mm².
  • Ambient temperature: -35...50°C; medium temperature: -50...160°C.

  • Brand
    Belimo
  • Reference
    22DT-12R
  • EAN13
    7630498117879

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    0...5 V 0...10 V
  • Probe length
    300 mm
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 5 kΩ

Techniczna karta katalogowa

Download (1.47MB)

Instrukcja montażu

Download (1.19MB)

Techniczna karta katalogowa – 22DT-12..

Download (1.47MB)

EU Declaration of Conformity – 22DT-12R

Download (39.94KB)

Environmental Declaration – ..DT..

Download (70.29KB)
