Belimo 22ADP-18QL - air differential pressure sensor

Belimo 22ADP-18QL - air differential pressure sensor

Belimo
zł1,160.51
VAT included
zł943.50 tax excluded

Air differential pressure sensor with LCD display, measuring range -150...250 Pa and 8 selectable ranges. AC/DC 24 V supply; output signals 0...5 V, 0...10 V or 4...20 mA.

Enclosure protection rating IP65 / NEMA 4X. Supplied with mounting plate, 2 plastic duct connectors and 2 m PVC tube.

Delivery in approx. 14 days
Share

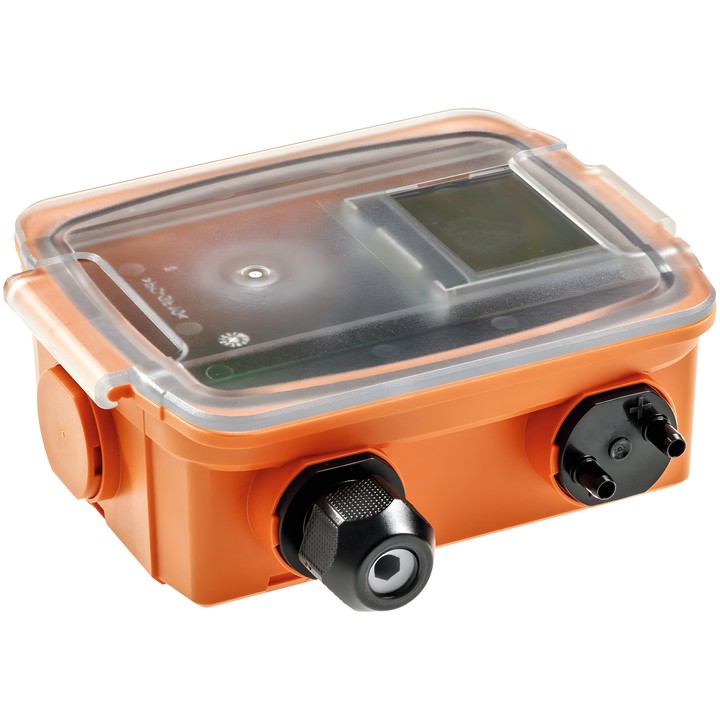

Belimo 22ADP-18QL differential pressure sensor

The device monitors the differential pressure of air and other non-flammable, non-aggressive gases in stationary HVAC installations. The technical data sheet lists air filters, fan V-belts and differential pressure systems as typical applications.

Key features

  • Measuring range: -150...250 Pa (-0.6...1 inch WC); 8 selectable measuring ranges.
  • Rated voltage: AC/DC 24 V.
  • Voltage output: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; select 0...5/10 V using the switch.
  • Current output: 1x 4...20 mA, max. resistance 500 Ω. When the voltage output is switched from 0...10 V to 0...5 V, the current range changes from 4...20 mA to 4...12 mA.
  • Backlit LCD; display in Pa or inch WC (configurable).
  • Adjustable typical response time: 0.8 s or 4.0 s.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable spring-clamp terminal block, max. 2.5 mm².
  • Supplied with: mounting plate, 2 m PVC tube, 2 plastic duct connectors, wall plugs and screws.

  • Brand
    Belimo
  • Reference
    22ADP-18QL
  • EAN13
    7630498100994

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure
  • Output signal
    0...5 V 0...10 V 4...20 mA
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (3.56MB)

Instrukcja montażu

Download (993.72KB)

Techniczna karta katalogowa – 22ADP-18Q..

Download (3.56MB)

EU Declaration of Conformity – 22ADP-18QL

Download (39.81KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
