Belimo 22PEM-1UE - DN 25 thermal energy meter

Belimo 22PEM-1UE - DN 25 thermal energy meter

Belimo
zł3,969.04
VAT included
zł3,226.86 tax excluded

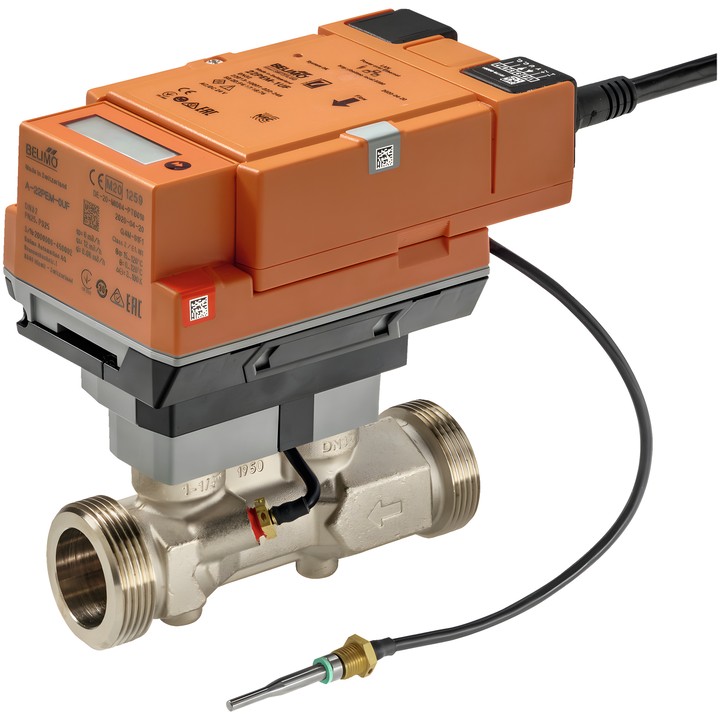

Thermal energy meter for measuring energy in a heating or cooling circuit. DN 25 version, PN 25, qp 3.5 m³/h, with ultrasonic flow measurement and AC/DC 24 V supply.

Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU and MP-Bus. It has an LCD display and an NFC interface for configuration with Belimo Assistant 2. MID approval applies to operation as a heat meter.

Delivery in approx. 14 days
Share

Belimo 22PEM-1UE – thermal energy meter

The device determines thermal energy based on volumetric flow and the temperature difference between the supply and return. It can operate as a heat meter, cooling meter or combined heating and cooling meter. MID / EN 1434 approval applies to operation as a heat meter; local regulations must be considered when using it as a cooling meter.

Key features and parameters

  • DN 25 connection, G 1 1/4" external thread, PN 25.
  • Nominal flow qp 3.5 m³/h; maximum flow qs 7 m³/h; minimum flow qi 0.035 m³/h.
  • Ultrasonic flow measurement; measured values: flow and temperature. Medium: water.
  • AC/DC 24 V supply; PoE (Power over Ethernet) supply is also possible.
  • Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
  • LCD display; configuration via NFC with Belimo Assistant 2 or via the integrated web server.
  • Medium temperature range for heat meter: 15...120°C; operating range as a cooling meter: 5...50°C.
  • Insulation cover for DN 15...25 meter included; according to the data sheet, the cover is not included in the Asia Pacific region.

  • Brand
    Belimo
  • Reference
    22PEM-1UE
  • EAN13
    7630498110368

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V
  • Communication
    BACnet/IP BACnet MS/TP Modbus TCP Modbus RTU MP-Bus
  • Flow qp
    3.5
  • Medium
    Water
  • Valve size
    25 mm | 1 inch

Techniczna karta katalogowa

Download (4.77MB)

Instrukcja montażu

Download (1.48MB)

Techniczna karta katalogowa – 22PEM-1U..

Download (4.97MB)

EU Declaration of Conformity – 22PEM-1UE

Download (139.05KB)

Environmental Declaration – 22PEM..

Download (71.66KB)
