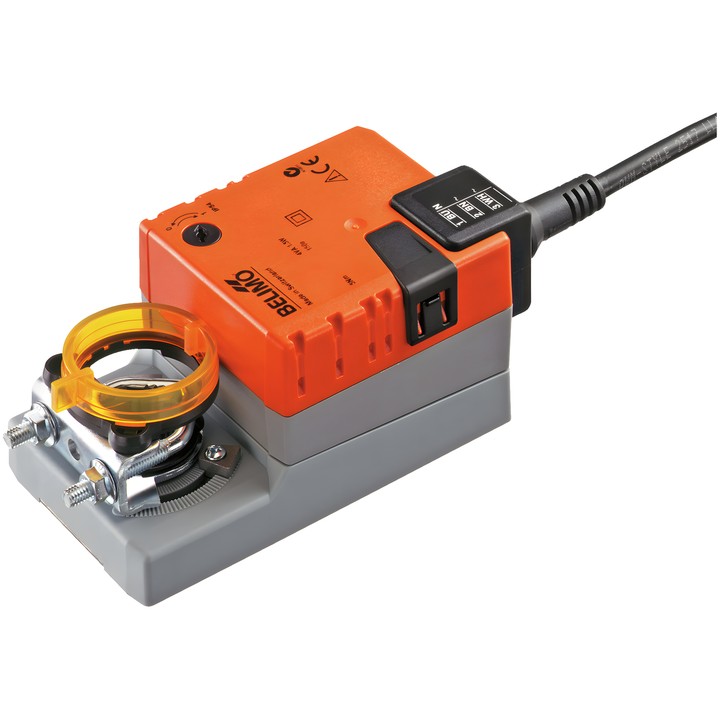

Belimo LMC230A - damper actuator

Belimo LMC230A - damper actuator

Belimo
zł476.76
VAT included
zł387.61 tax excluded

Belimo LMC230A damper actuator with 5 Nm torque, AC 100...240 V supply and 3-point Open/Close control. Motor running time is 35 s / 90°.

Features a universal clamp 6...20 mm, manual override by push-button with lock and a mechanical position indicator. IEC/EN degree of protection: IP54.

Delivery in approx. 14 days
Share

Belimo LMC230A damper actuator

Actuator designed to control air dampers in technical building systems. According to the technical datasheet, it is intended for dampers with an area of up to approx. 1 m².

Key features and parameters

  • Motor torque: 5 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close, 3-point.
  • Motor running time: 35 s / 90°; rotation angle: max. 95°.
  • Direction of movement selected by switch 0 (rotation to the left) / 1 (rotation to the right).
  • Manual override by push-button with lock; rotation angle limited by adjustable mechanical stops.
  • Mechanical connection: universal clamp 6...20 mm; mechanical, removable position indicator.
  • Power and control connection: cable 1 m, 3x 0.75 mm².
  • Power consumption during operation: 2 W; in rest position: 0.5 W; for cable sizing: 4 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LMC230A
  • EAN13
    7630498112379

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.41MB)

Instrukcja montażu

Download (507.4KB)

EU Declaration of Conformity – LMC230A

Download (32.74KB)

Environmental Declaration – LM..

Download (72.43KB)
