Belimo CM24K-T-L.2 - rotary actuator for dampers

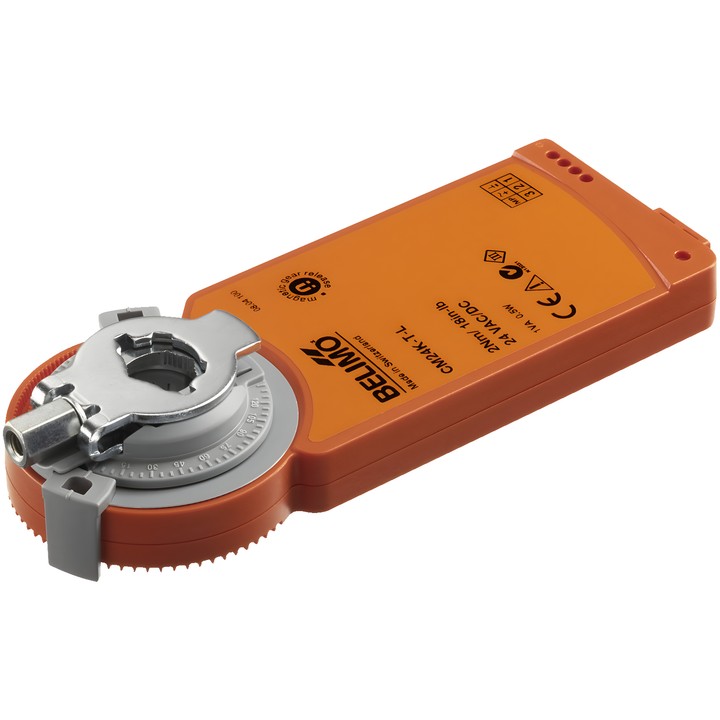

Belimo CM24K-T-L.2 rotary actuator

Actuator for positioning dampers in technical building systems, designed for use with the SKM230-T-B12 module. Close/Open control is via the module; the documentation describes the system as equipped with a safety function.

Main features and specifications

• Motor torque: 2 Nm; nominal voltage: DC 24 V.
• Motor running time: 75 s / 90°; rotation angle: 95° with adjustable mechanical limiters on both sides.
• Motor direction: counter-clockwise (ccw).
• Universal shaft clamp for 6...12.7 mm; manual adjustment using a magnet.
• Power consumption during movement: 0.5 W; at rest: 0.2 W; power for cable sizing: 1 VA.
• Power and control connection: terminals, solid copper wire 1,5 mm² or stranded wire 1,0 mm² (3-core).
• Degree of protection IEC/EN IP20; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
• Ambient temperature: -30...50°C [-22...122°F].
• Multipack: 20 pcs.

The actuator is protected against overload and stops automatically when it reaches the limit stop. Use of the safety function is described in connection with the module.
