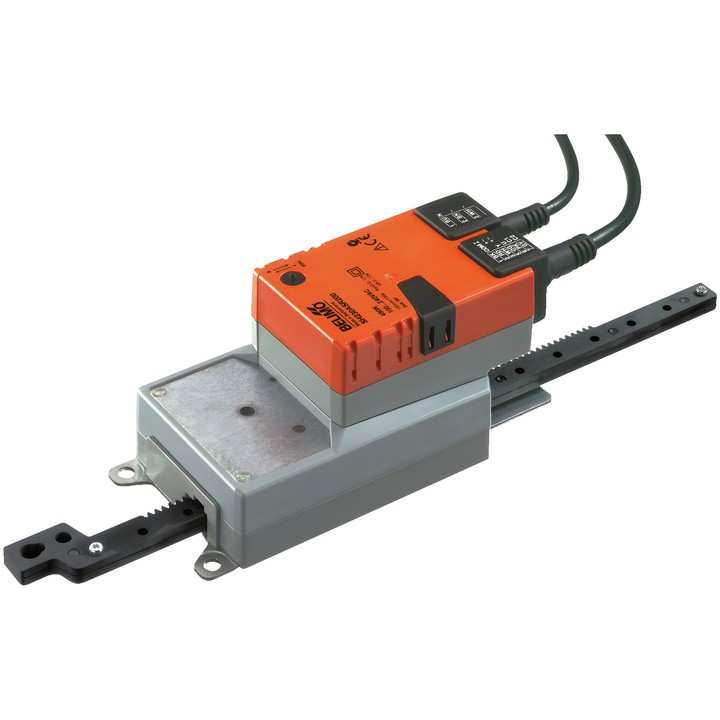

Belimo SH230ASR200 - modulating linear actuator

Belimo SH230ASR200 - modulating linear actuator

Belimo
zł1,124.16
VAT included
zł913.95 tax excluded

Belimo SH230ASR200 linear actuator for controlling dampers and gates in building services installations. Force 450 N, AC 100...240 V supply and 2...10 V modulating control.

Stroke 200 mm, running time 150 s / 100 mm, 2...10 V position feedback signal and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo SH230ASR200 – linear actuator

Modulating actuator designed to control dampers and gates in stationary heating, ventilation and air conditioning installations. According to the technical data sheet, it is suitable for air dampers with an area of up to approx. 3 m².

Key features

  • Actuator force: 450 N.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Stroke: 200 mm; maximum stroke length 200 mm, fixed setting.
  • Motor running time: 150 s / 100 mm.
  • Power consumption during operation: 3 W; at rest: 1 W; for cable sizing: 6 VA.
  • Direction of movement selected by switch; manual adjustment by push-button with locking option.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SH230ASR200
  • EAN13
    7630498122095

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    1 W
  • Rated power
    6 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    200 mm
  • Running time (motor)
    150 s / 100 mm
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch
  • Control connection
    Cable 1 m, 4x 0.75 mm²

Techniczna karta katalogowa

Download (1.02MB)

Instrukcja montażu

Download (486.72KB)

EU Declaration of Conformity – SH230ASR200

Download (32.8KB)

Environmental Declaration – SH..200..

Download (71.93KB)
