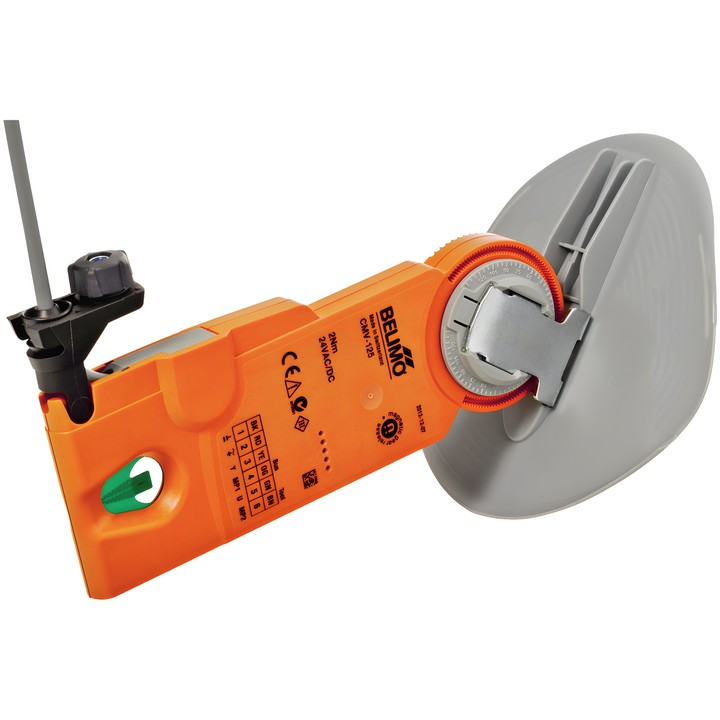

Belimo CMV-150-MP - VAV air flow controller DN 150

Name: Belimo CMV-150-MP - VAV air flow controller DN 150
Brand: Belimo
SKU: CMV-150-MP
Price: 1964.31 PLN
Availability: OutOfStock

Belimo

zł1,964.31

VAT included

zł1,597.00 tax excluded

Belimo CMV-150-MP VAV controller for installation in circular ducts with an internal diameter of DN 150. The device includes a damper blade and an air velocity sensor; it regulates the air flow independently of pressure changes in residential ventilation systems.

AC/DC 24 V supply, 2 Nm torque and control via an analogue signal or MP-Bus.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CMV-150-MP – VAV controller DN 150

CMV-150-MP is an air flow controller with a damper blade, actuator and air velocity sensor. It is designed to regulate air flow independently of pressure changes in residential ventilation systems and for installation in circular ducts.

Key features and specifications

Duct internal diameter: DN 150.
Air velocity range: 0.3 … 7 m/s; thermal anemometer measurement.
Operating modes: VAV – variable air flow and CAV – constant air flow.
Analogue control DC 0/2 … 10 V or MP-Bus communication; air flow or damper position feedback signal DC 0/2 … 10 V.
AC/DC 24 V supply; power consumption during movement 1.5 W, at rest 1 W; rated power 2.5 VA.
Torque: 2 Nm; motor running time: 70 s; manual adjustment using a magnet.
Electrical connection: 1 m cable, 4 x 0.34 mm²; degree of protection IP00.
Ambient temperature: 0 … 50°C.
Integrated duct air temperature sensor; readout via MP-Bus.
Damper leakage class for CMV-150-MP: Class 2 in accordance with EN 1751.

In CAV mode, the positions CLOSED / min / mid / max / OPEN are available; mid and OPEN require AC 24 V power. The air flow settings for the device are specified by the ventilation unit manufacturer.
