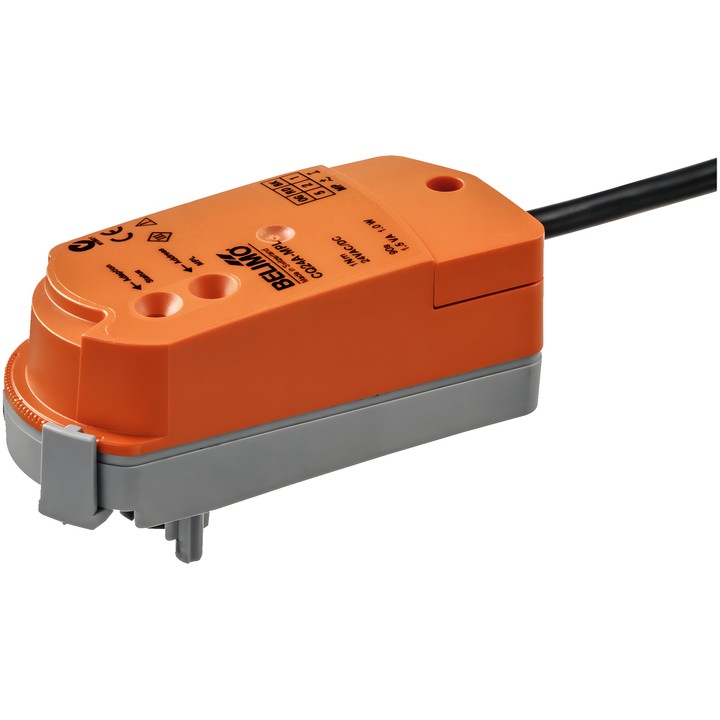

Belimo CQD24A-MPL - rotary actuator for zone valves

Name: Belimo CQD24A-MPL - rotary actuator for zone valves
Brand: Belimo
SKU: CQD24A-MPL
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

Communicating rotary actuator for zone valves, with a torque of 1 Nm. AC/DC 24 V power supply, control via MP-Bus and an operating time of 15 s / 90°.

Tool-free snap-on mounting, mechanical position indicator and adjustable flow setting.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CQD24A-MPL

Communicating rotary actuator for zone valves. It receives a digital control signal via MP-Bus and moves to the specified position.

Key features and specifications

Torque: 1 Nm; operating time: 15 s / 90°.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Power consumption during operation: 1 W; in the rest position: 0.4 W; sizing power: 1.5 VA.
Communicating control: MP-Bus.
Power and control connection: 1 m cable, 3x 0.75 mm².
Tool-free snap-on mounting; mechanical position indicator.
The rotation angle can be adjusted using a clip in 2.5° increments to set the valve's maximum flow.
Manual repositioning is possible after detaching the actuator from the valve.
Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

Standard control via an analogue signal is not possible. Device parameters can be modified using Belimo Assistant 2.
