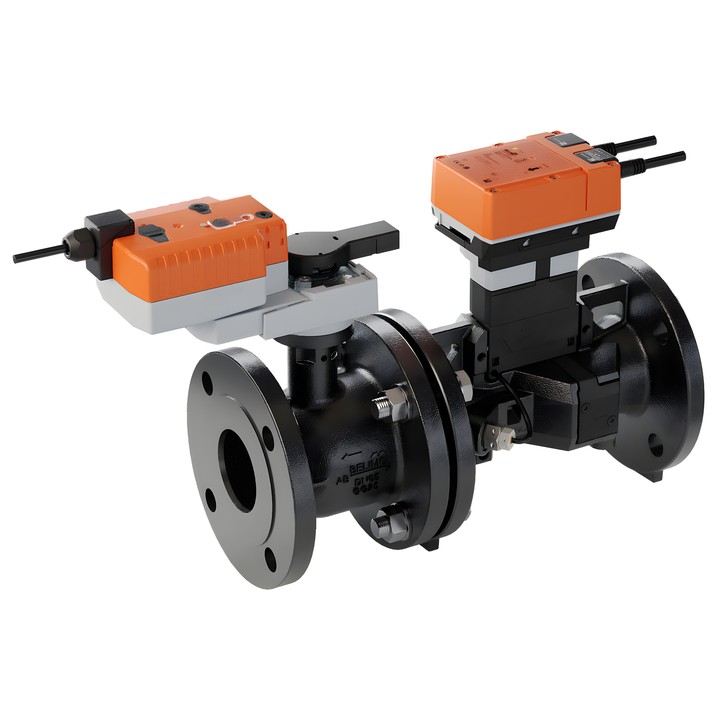

Belimo EP150F2-16+KBAC - Pressure-independent 2-way control valve

Name: Belimo EP150F2-16+KBAC - Pressure-independent 2-way control valve
Brand: Belimo
SKU: EP150F2-16+KBAC
Price: 62972.31 PLN
Availability: OutOfStock

Belimo

zł62,972.31

VAT included

zł51,197.00 tax excluded

Electronic 2-way EPIV control valve with sensor-based flow control and safety function. DN 150, PN 16 version with flanged connection; V'nom 50.0 l/s (180 m³/h).

AC/DC 24 V power supply, 2...10 V control, and BACnet MS/TP, Modbus RTU and MP-Bus communication. The device measures flow and medium temperature and monitors glycol concentration.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EP150F2-16+KBAC

Pressure-independent 2-way EPIV control valve with sensor-based flow control and actuator with safety function. Designed for closed water systems and water-side control in ventilation and heating systems.

Key features and specifications

DN 150, PN 16; flanged connection.
V'nom 50.0 l/s (3000 l/min; 180 m³/h); V'max setting range 25...100% V'nom.
Medium: water or water with max. 60% vol. glycol; medium temperature -10...120°C [14...248°F].
∆pmax 350 kPa; closing pressure ∆ps 690 kPa.
AC/DC 24 V power supply; power consumption 12.1 W during operation and 4.1 W in standby.
Control signal Y range 2...10 V; BACnet MS/TP, Modbus RTU and MP-Bus communication. Supports modulating, communicating and hybrid control.
Ultrasonic flow measurement, medium temperature measurement and glycol concentration monitoring.
Safety function: moves to the selected position if the power supply fails; time 35 s / 90°.
NFC interface for configuration using Belimo Assistant 2; manual adjustment by button.
1 m power and control cable; IEC/EN IP54 protection rating.

At a medium temperature of -10...2°C, extending the valve neck is recommended. The permitted medium temperature may depend on the actuator type.

Brand

Belimo
Reference

EP150F2-16+KBAC
EAN13

7630498136948

Medium

Water, water with max. 60% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 350 kPa
Closing pressure

690 kPa
Differential pressure note

200 kPa for quiet operation
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Flange
V'nom [l/s]

50.0
Adjustable flow rate

25...100% V'nom
