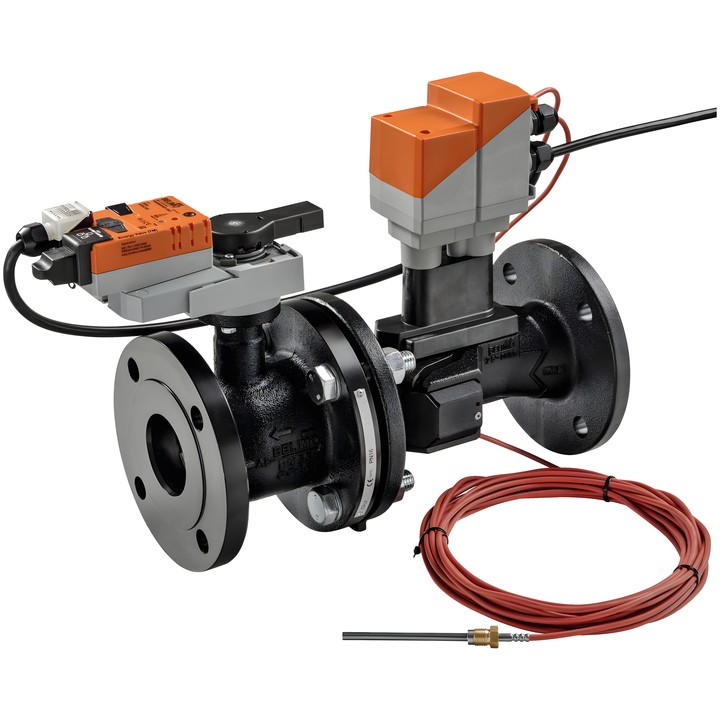

Belimo EV125F+KBAC - 2-way Energy Valve control valve
Price:
zł30,986.79
VAT included
zł25,192.51 tax excluded
Belimo EV125F+KBAC is a 2-way, pressure-independent Energy Valve control valve with a safety function. It controls flow or power based on sensor measurements and monitors power, energy and glycol concentration.
DN 125, PN 16, flanged connection, V'nom 31 l/s (111.6 m³/h). AC/DC 24 V supply; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.
Belimo EV125F+KBAC – Energy Valve DN 125
2-way control valve with a safety function, sensor-based flow or power control, and ultrasonic flow measurement. Designed for closed water systems and control on the water side of ventilation and heating systems.
Key features and specifications
- DN 125, PN 16; flanged connection.
- V'nom 31 l/s (111.6 m³/h); V'max adjustable within the range 30...100% V'nom.
- Fluid: water or water with up to 50% vol. glycol; fluid temperature -10...120°C [14...248°F].
- Maximum differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
- AC/DC 24 V supply; power consumption during operation 16.5 W, in standby position 6.5 W; power for cable sizing 29 VA.
- Control signal Y 2...10 V; modulating, communicative and hybrid control.
- Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud.
- Safety function with adjustable position on power failure; repositioning time 35 s / 90°.
- Power and energy monitoring, glycol concentration monitoring, integrated delta T manager, and data logging for 13 months.
- Manual override by push-button; IEC/EN IP40 protection rating.
-
Brand
-
ReferenceEV125F+KBAC
-
EAN137630498117084
-
MediumWater, water with up to 50% vol. glycol.
-
Pattern2-way
-
Fluid temperature-10...120°C [14...248°F]
-
Differential pressure∆pmax 340 kPa
-
Closing pressure690 kPa
-
Flow characteristicEqual-percentage characteristic
-
Permissible leakageBubble-tight, leakage class A
-
Pipe connectionFlange
-
V'nom [l/s]31
-
Adjustable flow rate30...100% V'nom
