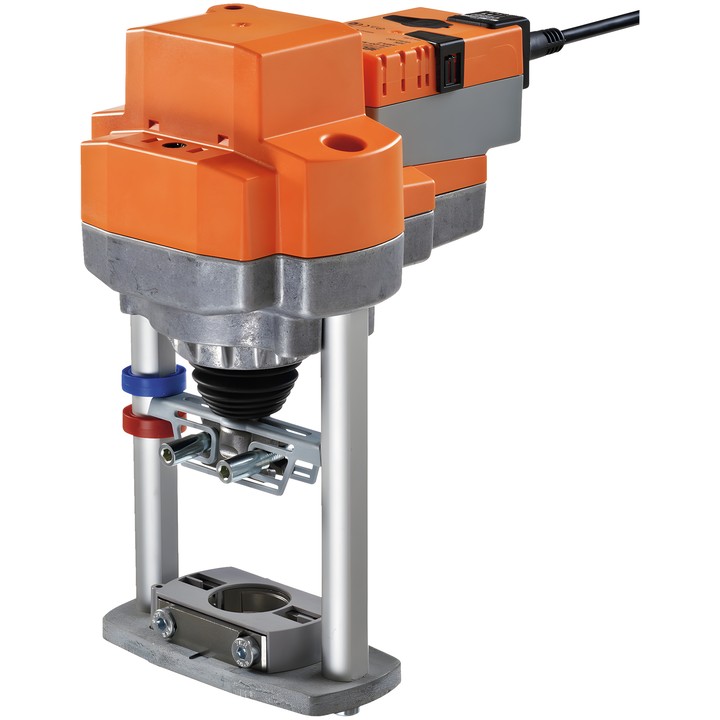

Belimo EVC24A-MF - linear actuator for globe valves

Name: Belimo EVC24A-MF - linear actuator for globe valves
Brand: Belimo
SKU: EVC24A-MF
Price: 3341.09 PLN
Availability: BackOrder

Belimo

zł3,341.09

VAT included

zł2,716.33 tax excluded

Configurable actuator for 2- and 3-way globe valves. Thrust force 2500 N, AC/DC 24 V supply, modulating control 2...10 V and 40 mm stroke.

Running time is 35 s / 40 mm and can be set within a range of 35...90 s. The actuator has a 2...10 V position feedback signal and manual adjustment by pushbutton.

Delivery in approx. 14 days

Belimo EVC24A-MF

Configurable linear actuator for 2- and 3-way globe valves. The analogue control signal Y determines the actuator position, while the measuring voltage U indicates the position from 0...100%.

Key features and parameters

Motor thrust force: 2500 N; stroke: 40 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Y operating range: 2...10 V; position feedback signal U: 2...10 V.
Motor running time: 35 s / 40 mm; adjustable running time: 35...90 s.
Power consumption during operation: 11 W; in the rest position: 1.5 W; power consumption for wire sizing: 18 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Manual adjustment by pushbutton, with option to lock; mechanical position indicator.
Setting range adaptation initiated manually; automatic adaptation when the power is first switched on.
Parameter configuration using Belimo Assistant 2 or ZTH EU.
