Belimo NM230ASR-TP - modulating damper actuator

Belimo NM230ASR-TP - modulating damper actuator

Belimo
zł923.75
VAT included
zł751.02 tax excluded

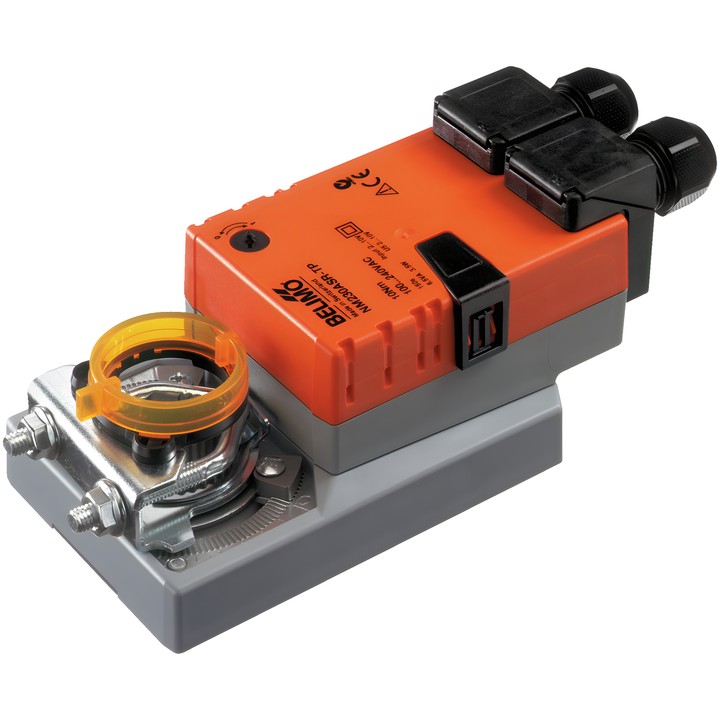

Belimo NM230ASR-TP damper actuator with 10 Nm torque, AC 100...240 V supply and 2...10 V modulating control. Running time is 150 s / 90°.

Features a 2...10 V position feedback signal, connection terminals and a universal shaft clamp for 8...26.7 mm shafts. IEC/EN protection rating: IP54.

Delivery in approx. 14 days
Share

Belimo NM230ASR-TP – damper actuator

A modulating actuator designed to position dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approximately 2 m².

Key features and specifications

  • Torque: 10 Nm.
  • Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Universal shaft clamp for 8...26.7 mm shafts; rotation angle limited by adjustable mechanical stops.
  • Direction of movement selected using a 0/1 switch; manual adjustment by push button with lock option.
  • Power and control connections: 4 mm² terminals; respective cables: ø4...10 mm, 2-core and ø4...10 mm, 4-core.
  • Power consumption during operation: 3.5 W; at rest: 1 W; sizing power: 6.5 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when it reaches the end stop.

  • Brand
    Belimo
  • Reference
    NM230ASR-TP
  • EAN13
    7630498113024

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1 W
  • Rated power
    6.5 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Terminals 4 mm² (cable ø4...10 mm, 2-core)
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm
  • Control connection
    Terminals 4 mm² (cable ø4...10 mm, 4-core)

Techniczna karta katalogowa

Download (1.76MB)

Instrukcja montażu

Download (203.36KB)

EU Declaration of Conformity – NM230ASR-TP

Download (32.8KB)

Environmental Declaration – NM..

Download (72.39KB)
