Belimo SH24A-MP300 - communicating linear actuator

Belimo SH24A-MP300 - communicating linear actuator

Belimo
zł1,148.84
VAT included
zł934.02 tax excluded

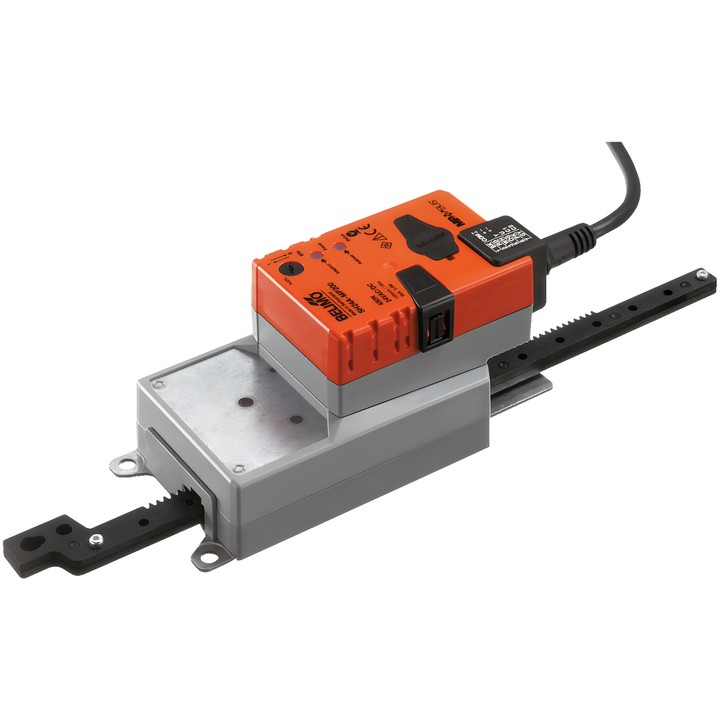

Belimo SH24A-MP300 linear actuator for regulating dampers and slide valves in technical building systems. Force 450 N, AC/DC 24 V supply, MP-Bus communication and 2...10 V modulating control.

The max. 300 mm stroke can be adjusted in 20 mm increments. Running time is 150 s / 100 mm, and the degree of protection is IP54.

Delivery in approx. 14 days
Share

Belimo SH24A-MP300 – linear actuator

Communicating linear actuator designed for regulating dampers and slide valves in stationary heating, ventilation and air conditioning systems. Supports analogue control and communication via MP-Bus. It can convert signals from a connected sensor for transmission via MP-Bus.

Key features and parameters

  • Actuator force: 450 N; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: operating range Y 2...10 V; position feedback signal U 2...10 V.
  • MP-Bus communication; max. 8 MP-Bus nodes.
  • Stroke: max. 300 mm, adjustable in 20 mm increments.
  • Motor running time: 150 s / 100 mm; adjustment range 150...600 s / 100 mm.
  • Direction of movement selected by switch; manual positioning by push-button with locking option.
  • Power consumption during operation: 3.5 W; at rest: 1.4 W; sizing power for cable selection: 6 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SH24A-MP300
  • EAN13
    7630498114267

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    450 N
  • Manual override
    Push-button, with locking option
  • Stroke
    300 mm
  • Running time (motor)
    150 s / 100 mm
  • Variable motor running time
    150...600 s / 100 mm
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.8MB)

Instrukcja montażu

Download (646.91KB)

Techniczna karta katalogowa – SH24A-MP300

Download (1.8MB)

EU Declaration of Conformity – SH24A-MP300

Download (32.8KB)

Environmental Declaration – SH..300..

Download (71.9KB)
