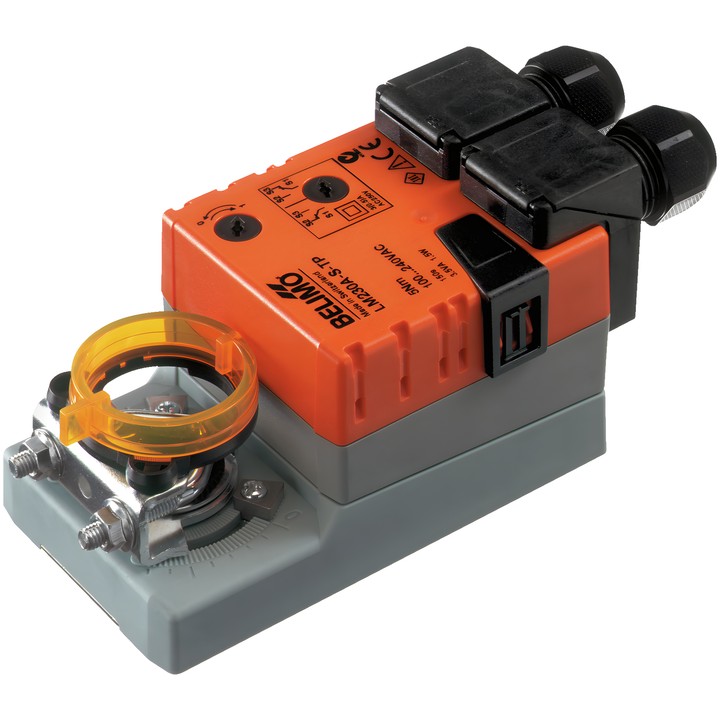

Belimo LM230A-S-TP damper actuator with 5 Nm torque, powered by AC 100...240 V. Supports Open/Close and 3-point control; running time is 150 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch, connection terminals and a universal shaft clamp for 6...20 mm. Protection rating: IP54.

Delivery in approx. 14 days
Share

Belimo LM230A-S-TP damper actuator

Rotary actuator for positioning dampers in building services systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1 m².

Key features and specifications

  • Torque: 5 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close, 3-point.
  • Motor running time: 150 s / 90°; maximum rotation angle: 95°.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Integrated auxiliary switch: 1x SPDT, adjustable within 0...100%.
  • Manual override by push button with lock; adjustable mechanical rotation angle stops and mechanical position indicator.
  • Mechanical connection: universal shaft clamp for 6...20 mm.
  • Power, control and auxiliary switch connections: 4 mm² terminals (cable ø4...10 mm, 3-core).
  • Power consumption during operation: 1.5 W; in idle position: 0.5 W; sizing power for cable selection: 3.5 VA.
  • Protection rating IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM230A-S-TP
  • EAN13
    7630498112218

  • AC/DC voltage
    AC 100...240 V
  • Auxiliary switch connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    3.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
