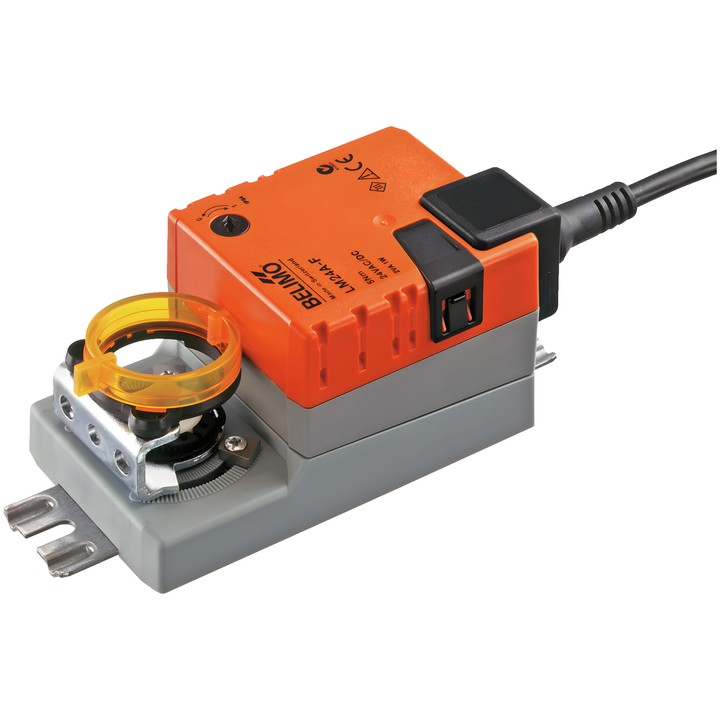

Belimo LM24A-F - damper actuator

Belimo LM24A-F - damper actuator

Belimo
zł464.73
VAT included
zł377.83 tax excluded

Belimo LM24A-F damper actuator with 5 Nm torque, AC/DC 24 V supply and 3-point Close/Open control. Running time is 150 s / 90°.

Features an 8x8 mm form-fit connection, push-button manual override and adjustable mechanical rotation angle limiters.

Delivery in approx. 14 days
Share

Belimo LM24A-F – damper actuator

Actuator designed to position dampers in technical building systems. According to the documentation, it is suitable for air dampers with an area of up to approx. 1 m².

Key features and technical data

  • Torque: 5 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Control: Close/Open, 3-point; motor running time: 150 s / 90°.
  • Rotation angle: max. 95°, with adjustable mechanical limiters on both sides.
  • Direction of movement selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Push-button manual override with locking option; mechanical position indicator.
  • Mechanical connection: 8x8 mm form-fit connection; power and control connection: 1 m cable, 3x 0.75 mm².
  • Power consumption during operation: 1 W; at rest: 0.2 W; power for cable sizing: 1.5 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-F
  • EAN13
    7630498112249

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.44MB)

Instrukcja montażu

Download (425.77KB)

EU Declaration of Conformity – LM24A-F

Download (32.74KB)

Environmental Declaration – LM..

Download (72.43KB)
