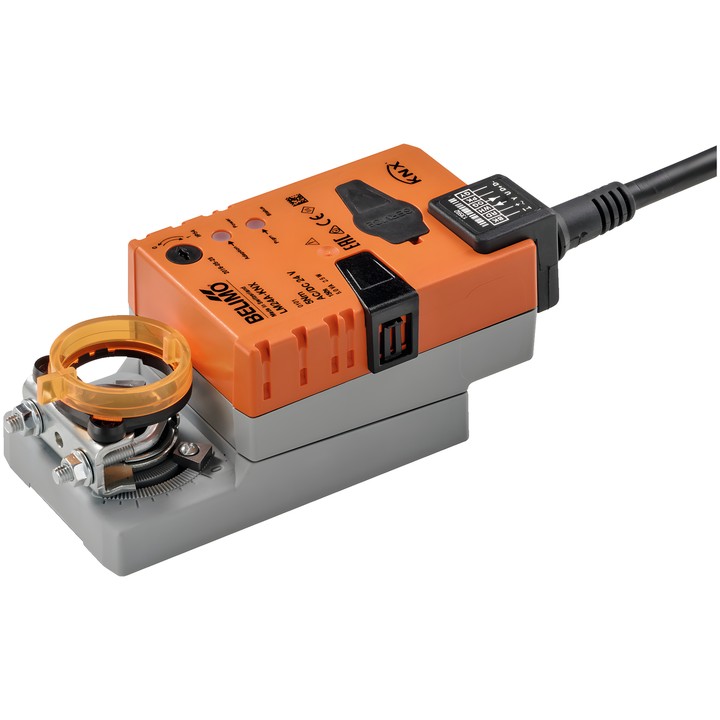

Belimo LM24A-KNX - rotary actuator for dampers

Belimo LM24A-KNX - rotary actuator for dampers

Belimo
zł926.29
VAT included
zł753.08 tax excluded

The Belimo LM24A-KNX rotary actuator for dampers has a torque of 5 Nm, an AC/DC 24 V supply and KNX (S-Mode) communication. The motor running time is 150 s / 90° and can be adjusted within a range of 35...150 s.

The device allows a sensor to be connected and its signal to be transmitted to KNX. It has a 6...20 mm universal clamp, push-button manual override and IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LM24A-KNX actuator

A communicative rotary actuator designed to position dampers in technical building systems. It is equipped with a KNX (S-Mode) interface and an input for connecting a passive or active sensor, or a switching contact, and transmitting the signal to KNX.

Key features and specifications

  • Motor torque: 5 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Control and communication: KNX (S-Mode); communication medium: KNX TP.
  • Motor running time: 150 s / 90°; adjustable running time: 35...150 s.
  • Power consumption during operation: 2.5 W; in the rest position: 1.3 W; wire sizing power: 5 VA.
  • Direction of movement selected by a 0/1 switch; push-button manual override with option to lock.
  • Adjustable rotation angle with mechanical stops and a mechanical position indicator.
  • Mechanical connection: 6...20 mm universal clamp; power and control connection: 1 m cable, 6x 0.75 mm².
  • IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be configured using Belimo Assistant 2 or the ETS tool. Setpoint range adaptation can be started manually.

  • Brand
    Belimo
  • Reference
    LM24A-KNX
  • EAN13
    7630498112256

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 6x 0.75 mm²
  • Control type
    KNX (S-Mode)
  • Protection rating
    IP54
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (3.69MB)

Instrukcja montażu

Download (656.48KB)

Techniczna karta katalogowa – LM24A-KNX

Download (3.69MB)

EU Declaration of Conformity – LM24A-KNX

Download (32.74KB)

Environmental Declaration – LM..

Download (72.44KB)
