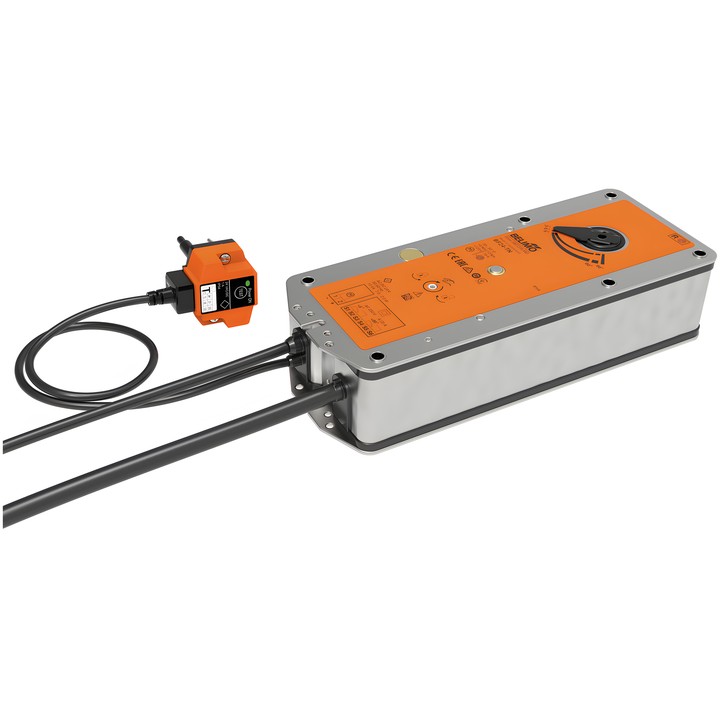

Belimo BF24-TN - fire damper actuator with spring return

Belimo BF24-TN - fire damper actuator with spring return

Belimo
zł2,707.23
VAT included
zł2,201.00 tax excluded

Belimo BF24-TN actuator for 90° fire and smoke dampers, with BAT thermal release (72°C). Motor torque 18 Nm, safety function torque 12 Nm; AC/DC 24 V supply and Close/Open control.

Equipped with 2x SPDT, a 12x12 mm mechanical connection and manual override with position stop.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BF24-TN

Spring-return actuator with BAT thermal release (72°C), designed for 90° fire and smoke dampers in ventilation and air-conditioning systems. When the power supply is interrupted, the spring moves the damper to the safety position.

Key technical data

  • Motor torque: 18 Nm; safety function torque: 12 Nm.
  • Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open.
  • Motor running time: <120 s / 90°; safety function running time: 16 s @ 20°C.
  • Power consumption during operation: 7 W; in the resting position: 2 W; power rating for cable sizing: 10 VA.
  • Auxiliary switches: 2x SPDT, switching points 5° / 80°.
  • Mechanical connection: form-fit connection 12x12 mm, non-through hollow shaft.
  • BAT release: ambient temperature fuse 72°C and duct internal temperature fuse 72°C.
  • Manual override with position stop; motor rotation direction selected by L/R mounting.
  • Degree of protection: IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).

Included: hand crank, indicator, protective cover and 12/10 mm form-fit insert.

  • Brand
    Belimo
  • Reference
    BF24-TN
  • EAN13
    7630498103612

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 6x 0.75 mm², FRNC (halogen-free)
  • Power consumption (running)
    7 W
  • Power consumption (holding)
    2 W
  • Rated power
    10 VA
  • Power supply control connection
    1 m cable, 2x 0.75 mm², FRNC (halogen-free)
  • Control type
    Close/Open
  • Protection rating
    IP54
  • Manual override
    With stop
  • Running time (motor)
    ＜120 s / 90°
  • Running time (safety function)
    16 s
  • Auxiliary contacts
    2x SPDT
  • Torque
    18 Nm
  • Direction of movement - motor
    Selectable by mounting L/R
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 12x12 mm, blind hollow shaft
