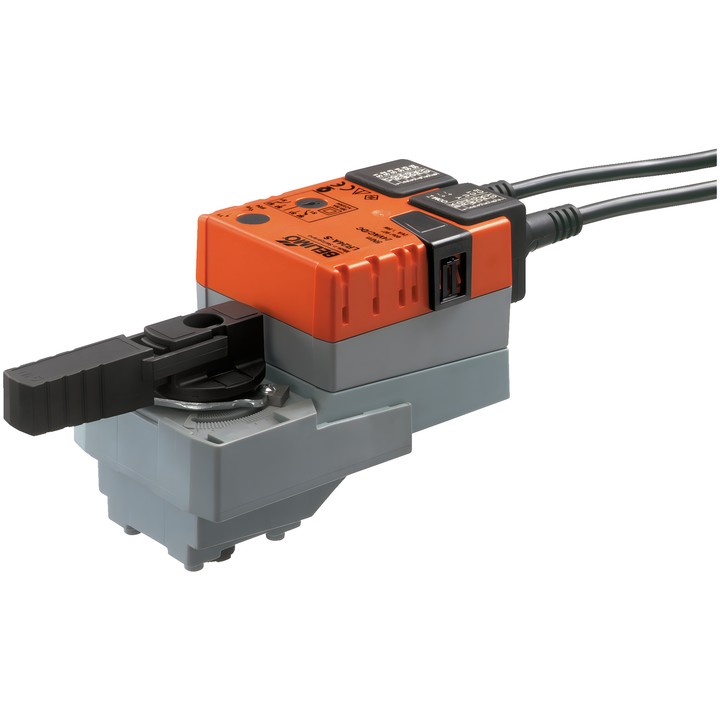

Belimo LR24A-S - rotary actuator for ball valves

Name: Belimo LR24A-S - rotary actuator for ball valves
Brand: Belimo
SKU: LR24A-S
Price: 571.73 PLN
Availability: BackOrder

Belimo

zł571.73

VAT included

zł464.82 tax excluded

Belimo LR24A-S rotary actuator for ball valves, with 5 Nm torque and AC/DC 24 V supply. Supports Open/Close and 3-point control; running time is 90 s / 90°.

It features an integrated 1x SPDT auxiliary switch with 0...100% setting, manual override by push-button and IP54 protection rating.

Delivery in approx. 14 days

Belimo LR24A-S – actuator for ball valves

Rotary actuator with mechanical rotation angle stops and a mechanical position indicator. Direct mounting on the ball valve uses a single central screw; the position relative to the valve can be selected in 90° increments.

Key features and technical data

Torque: 5 Nm; running time: 90 s / 90°.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Integrated auxiliary switch: 1x SPDT, setting 0...100%.
Power consumption: 1.5 W during operation and 0.2 W at rest; wire sizing value: 2 VA.
Manual override by push-button with locking option; adjustable rotation angle with mechanical stops.
Power and control connection and auxiliary switch connection: separate 1 m cables, 3x 0.75 mm².
Protection rating IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

The actuator is overload-protected and stops automatically when the end stop is reached.
