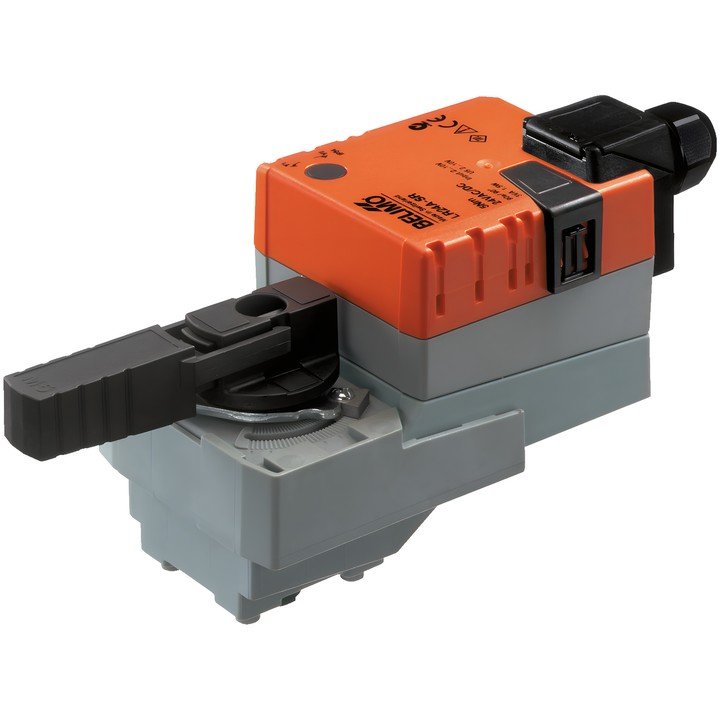

Belimo LR24A-TP - rotary actuator for ball valves

Name: Belimo LR24A-TP - rotary actuator for ball valves
Brand: Belimo
SKU: LR24A-TP
Price: 1001.22 PLN
Availability: OutOfStock

Belimo

zł1,001.22

VAT included

zł814.00 tax excluded

Belimo LR24A-TP rotary actuator for ball valves, with a torque of 5 Nm and an AC/DC 24 V supply. Supports Open/Close and 3-point control; running time is 90 s / 90°.

Features connection terminals, manual adjustment by push-button and a mechanical position indicator. IEC/EN protection rating: IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LR24A-TP – rotary actuator for ball valves

Actuator for direct mounting on a ball valve using a single central screw. The mounting position relative to the valve can be selected in 90° increments.

Key features and specifications

Torque: 5 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Motor running time: 90 s / 90°.
Power consumption during operation: 1.5 W; at rest: 0.2 W; for wire sizing: 2 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm, 3-core).
Manual adjustment by push-button, with the option to lock it.
Mechanical plug-in position indicator and adjustable rotation angle with mechanical stops.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

The actuator is overload-protected and stops automatically when the end stop is reached.
