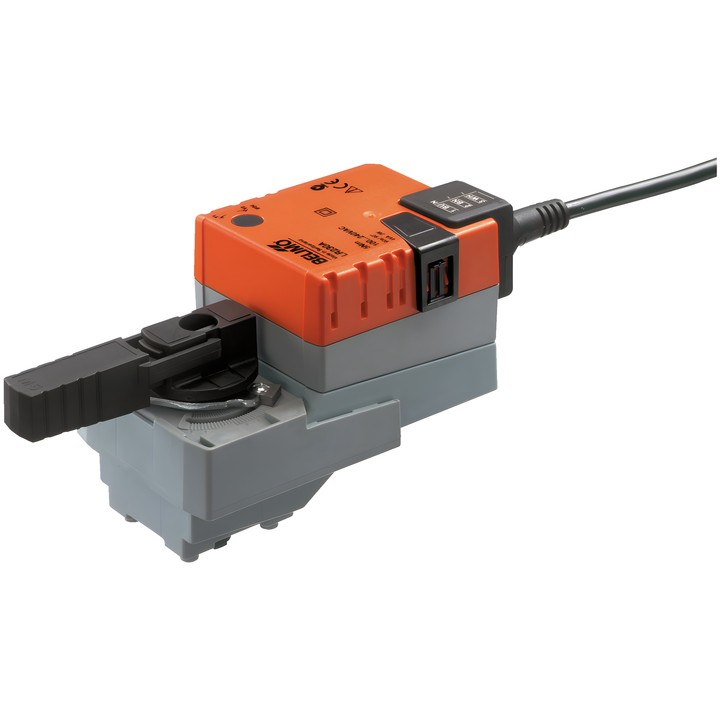

Belimo LRD230A - rotary actuator for ball valves

Name: Belimo LRD230A - rotary actuator for ball valves
Brand: Belimo
SKU: LRD230A
Price: 1367.76 PLN
Availability: OutOfStock

Belimo

zł1,367.76

VAT included

zł1,112.00 tax excluded

Belimo LRD230A rotary actuator for ball valves. Torque 4 Nm, rated voltage AC 100...240 V, Close/Open or 3-point control, and running time 15 s / 90°.

Features manual override with push button and lock, a mechanical position indicator, and adjustable mechanical rotation angle stops. IEC/EN degree of protection IP54.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LRD230A rotary actuator

LRD230A is a rotary actuator for ball valves. It can be mounted directly on the valve using one central screw; the mounting position relative to the valve can be selected in 90° increments.

Key features and technical data

Motor torque: 4 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 15 s / 90°.
Power consumption during operation: 2.5 W; in the rest position: 0.5 W; sizing power: 6.5 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override with push button and lock.
Mechanical, removable position indicator and rotation angle adjustment using mechanical stops.
Overload protection; automatic stop when the end position is reached.
IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].
