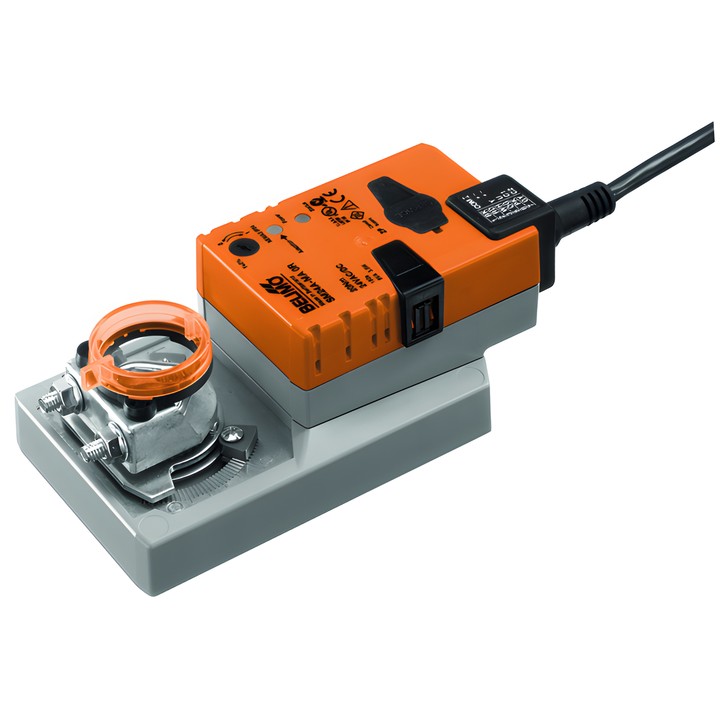

Belimo SM24A-PC rotary actuator for positioning dampers in technical building systems. Torque 20 Nm, AC/DC 24 V supply and modulating control 0...20 V PhC.

The model provides a 2...10 V position feedback signal and manual adjustment using a push button with the option to lock it.

Delivery in approx. 14 days
Share

Belimo SM24A-PC – rotary actuator for dampers

Configurable actuator for positioning dampers in technical building systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 4 m². The 0...20 V PhC control signal determines the actuator position, while the 2...10 V feedback signal enables electrical position readout.

Key features

  • Torque: 20 Nm; supply: AC/DC 24 V.
  • Modulating control: 0...20 V PhC; position feedback: 2...10 V.
  • Motor running time: 150 s / 90°; adjustable running time: 90...350 s.
  • Rotation angle: max. 95°, with the option of limiting it using mechanical stops on both sides.
  • Motor direction selected using the 0/1 switch.
  • Manual adjustment using a push button with the option to lock it.
  • Reversible universal mounting clamp 10...20 mm; power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].
  • Power consumption during operation: 3.5 W; in the rest position: 1.25 W; power rating for cable sizing: 6 VA.

Actuator parameters can be changed using the MFT-P or ZTH EU service tools. The setting range adaptation can be started manually.

  • Brand
    Belimo
  • Reference
    SM24A-PC

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (holding)
    1.25 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 0...20 V PhC
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    90...350 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

EU Declaration of Conformity – SM24A-PC

Download (32.76KB)

Environmental Declaration – SM..

Download (72.47KB)

Technical data sheet – SM24A-PC

Download (606.27KB)
