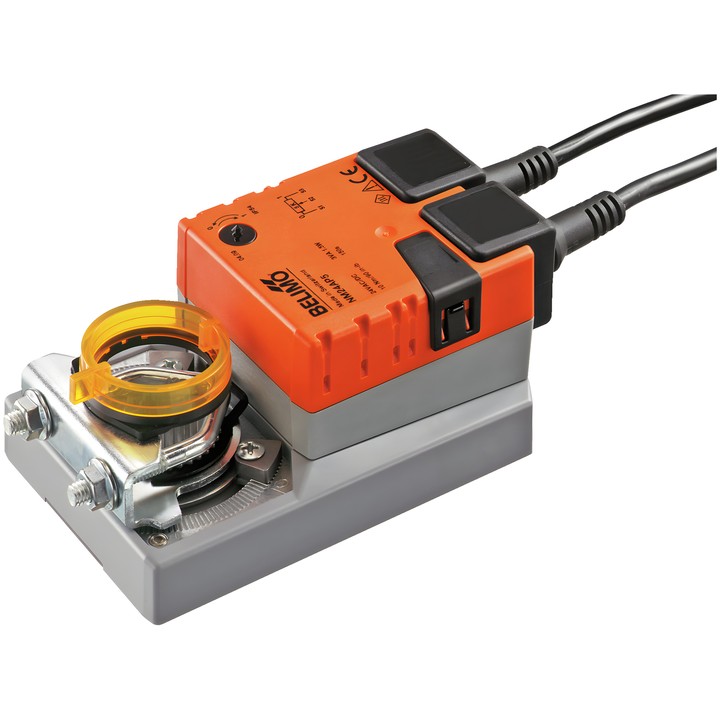

Belimo NM24AP5 damper actuator with a torque of 10 Nm, powered by AC/DC 24 V. Supports Close/Open and 3-point control; running time is 150 s / 90°.

Equipped with an integrated 5 kΩ feedback potentiometer, a universal shaft clamp for 8...26.7 mm and push-button manual override.

Delivery in approx. 14 days
Share

Belimo NM24AP5 damper actuator

The NM24AP5 is an actuator designed to position air dampers in technical building systems. According to the technical data sheet, it is intended for dampers with an area of up to approx. 2 m².

Key features

  • Torque: 10 Nm; rated voltage: AC/DC 24 V.
  • Control: Close/Open, 3-point; motor running time: 150 s / 90°.
  • Integrated 5 kΩ feedback potentiometer, providing a 0...100% position signal.
  • Rotation direction selected by switch: 0 (counter-clockwise) / 1 (clockwise).
  • Rotation angle: max. 95°, with adjustment possible on both sides using adjustable mechanical stops.
  • Push-button manual override with locking option; mechanical position indicator.
  • Universal shaft clamp: 8...26.7 mm; power and control connection: 1 m cable, 3x 0.75 mm²; potentiometer connection: 1 m cable, 3x 0.75 mm².
  • Power consumption during operation: 1.5 W; in standby: 0.2 W; power rating for cable sizing: 3.5 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM24AP5
  • EAN13
    7630498113147

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    3.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm
  • Potentiometer
    5 kΩ
  • Potentiometer connection
    Cable, 3x 0.75 mm²

Techniczna karta katalogowa

Download (1.57MB)

Instrukcja montażu

Download (536.22KB)

EU Declaration of Conformity – NM24AP5

Download (32.74KB)

Environmental Declaration – NM..

Download (72.36KB)
