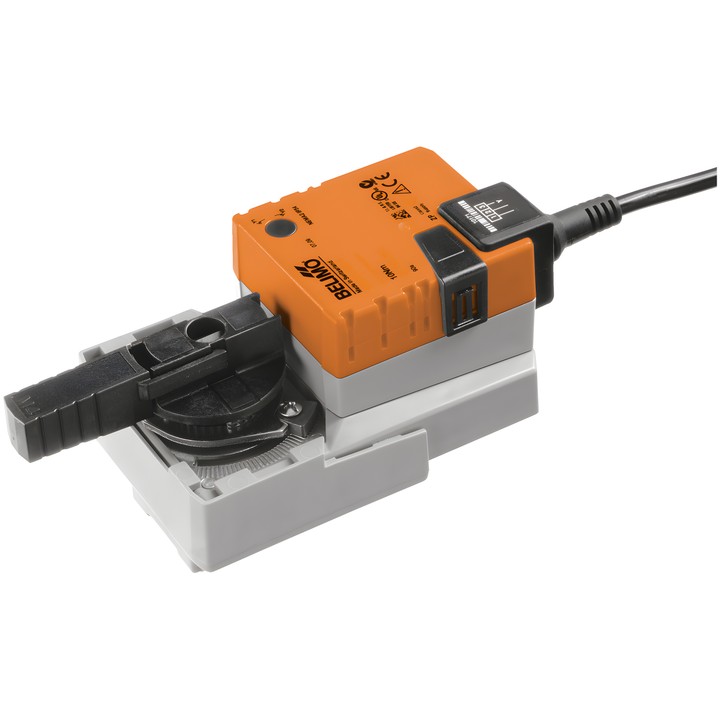

Belimo NR230A - rotary actuator for ball valves

Name: Belimo NR230A - rotary actuator for ball valves
Brand: Belimo
SKU: NR230A
Price: 654.22 PLN
Availability: BackOrder

Belimo

zł654.22

VAT included

zł531.89 tax excluded

Belimo NR230A rotary actuator for ball valves, with a torque of 10 Nm. Power supply AC 100...240 V; control Open/Close or 3-point. Running time is 90 s / 90°.

The device has manual override by push-button with the option to lock it, a mechanical rotation angle limiter and IP54 protection rating.

Delivery in approx. 14 days

Belimo NR230A – actuator for ball valves

Electronic rotary actuator for ball valves, designed for use in stationary heating, ventilation and air-conditioning systems. Supports Open/Close and 3-point control.

Key features and technical data

Torque: 10 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz; voltage range: AC 85...265 V.
Running time: 90 s / 90°.
Power consumption during operation: 3 W; at rest: 0.6 W; wire sizing power: 7 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override by push-button with the option to lock it.
Adjustable rotation angle with mechanical stops; mechanical, plug-in position indicator.
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
Ambient temperature: -30...50°C.
Direct mounting on the ball valve using one central screw; mounting position can be selected in 90° increments.

The actuator is protected against overload and stops automatically when the end stop is reached. Installation may only be carried out by qualified specialists.
