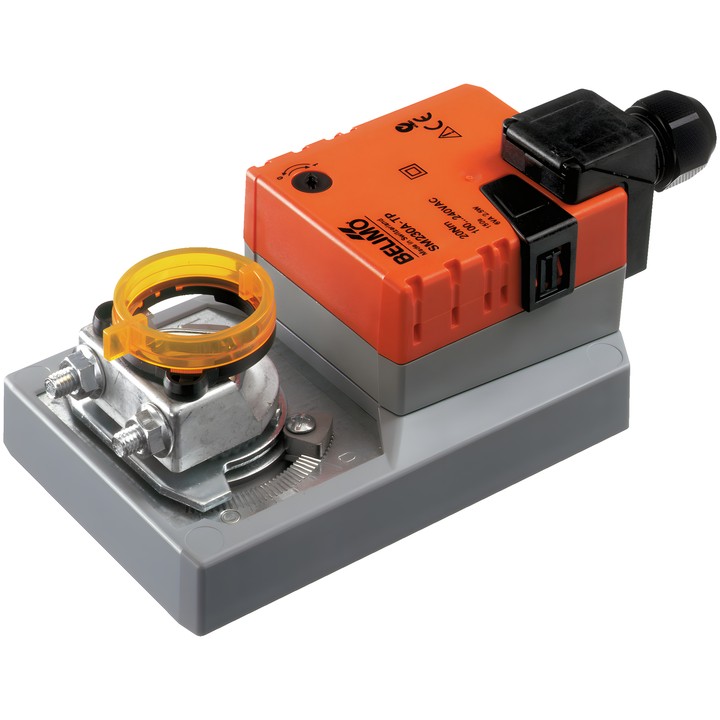

Belimo SM230A-TP - damper actuator

Belimo SM230A-TP - damper actuator

Belimo
zł666.89
VAT included
zł542.19 tax excluded

Belimo SM230A-TP damper actuator with a torque of 20 Nm, powered by AC 100...240 V. Close/Open, 3-point control; motor running time is 150 s / 90°.

Equipped with connection terminals, a reversible universal mounting clamp 10...20 mm, and a push button for manual adjustment with locking option.

Delivery in approx. 14 days
Share

Belimo SM230A-TP damper actuator

Rotary actuator for controlling dampers in technical building systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 4 m².

Key features and specifications

  • Motor torque: 20 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 90°; angle of rotation: max. 95°.
  • Direction of movement selected by switch: 0 (rotation to the left) / 1 (rotation to the right).
  • Manual adjustment by push button with locking option.
  • Reversible universal mounting clamp 10...20 mm; mechanical angle-of-rotation stops adjustable on both sides.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm, 3-core).
  • Power consumption: 2.5 W during operation and 0.6 W at rest; sizing power: 6 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM230A-TP
  • EAN13
    7630498114373

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    6 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.84MB)

Instrukcja montażu

Download (203.35KB)

EU Declaration of Conformity – SM230A-TP

Download (32.77KB)

Environmental Declaration – SM..

Download (72.47KB)
