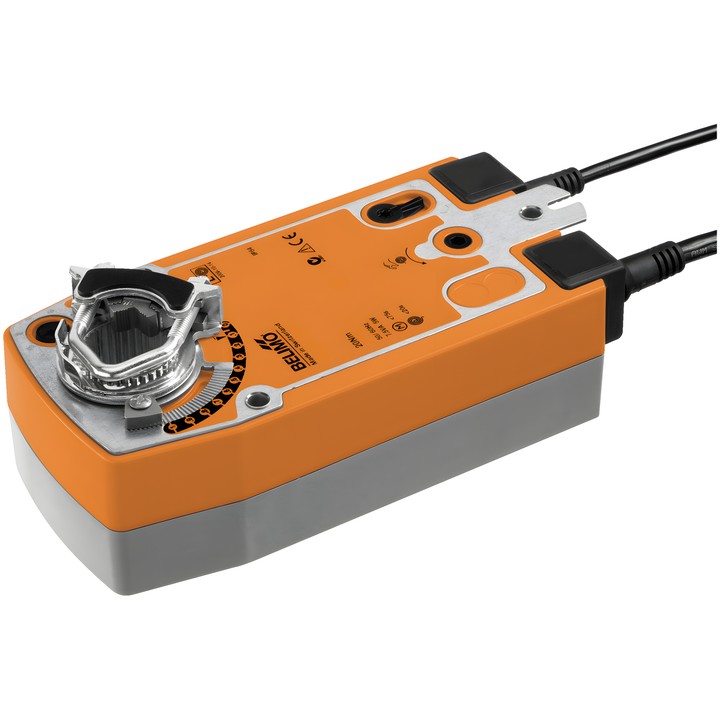

Belimo SF24A-SR-S2 - rotary actuator for dampers with fail-safe function

Belimo SF24A-SR-S2 - rotary actuator for dampers with fail-safe function

Belimo
zł1,398.37
VAT included
zł1,136.89 tax excluded

Rotary actuator for dampers with fail-safe function, with a torque of 20 Nm and AC/DC 24 V supply. Modulating control 2...10 V, position feedback signal 2...10 V and two integrated auxiliary switches 2x SPDT.

Motor running time is 150 s / 90°. If the power supply fails, the spring moves the damper to the safety position.

Delivery in approx. 14 days
Share

Belimo SF24A-SR-S2 – technical data

Rotary actuator with fail-safe function, designed for damper control in technical building systems. The analogue control signal sets the damper to its operating position while tensioning the return spring. If the power supply is interrupted, the spring moves the damper to the safety position.

Key features

  • Torque of the motor and fail-safe function: 20 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Auxiliary switches: 2x SPDT, 1x 10% / 1x 11...100%.
  • Motor running time: 150 s / 90°; fail-safe function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Maximum rotation angle: 95°; adjustment using mechanical stops.
  • Manual operation using a crank and locking switch; mechanical position indicator.
  • Mounting on the damper shaft using a universal clamp 10...25.4 mm.
  • Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].

Power and control connection: 1 m cable, 4x 0.75 mm². Auxiliary switch connection: 1 m cable, 6x 0.75 mm².

  • Brand
    Belimo
  • Reference
    SF24A-SR-S2
  • EAN13
    7630498114090

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 6x 0.75 mm²
  • Power consumption (running)
    4.5 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    6.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    2x SPDT
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...25.4 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (1.38MB)

Instrukcja montażu

Download (1.64MB)

Techniczna karta katalogowa – SF24A-SR-S2

Download (1.39MB)

EU Declaration of Conformity – SF24A-SR-S2

Download (51.15KB)

Environmental Declaration – SF..

Download (72.41KB)
