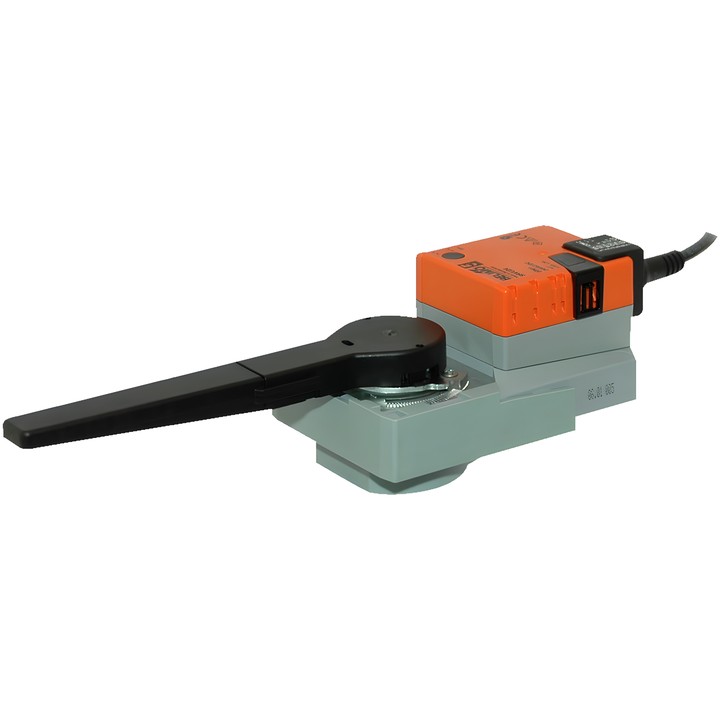

Belimo SR230A-5 - rotary actuator for valves

Name: Belimo SR230A-5 - rotary actuator for valves
Brand: Belimo
SKU: SR230A-5
Price: 979.13 PLN
Availability: BackOrder

Belimo

zł979.13

VAT included

zł796.04 tax excluded

Rotary actuator for rotary valves and dampers. Torque 20 Nm, power supply AC 100...240 V, Close/Open or 3-point control, and running time 90 s / 90°.

Features manual override by push-button, a mechanical rotation angle limiter and a position indicator. IP54 protection rating.

Delivery in approx. 14 days

Belimo SR230A-5 – rotary actuator

Actuator for direct mounting on rotary valves and dampers using an F05 flange. The mounting position relative to the valve can be selected in 90° increments.

Key features and technical data

Torque: 20 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Running time: 90 s / 90°.
Power consumption during operation: 3 W; at rest: 0.6 W; sizing power: 7 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Manual override by push-button, with lock option.
Adjustable rotation angle with mechanical limit stops and an integrated mechanical position indicator.
IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.
The actuator is overload-protected and stops automatically when the limit stop is reached.
