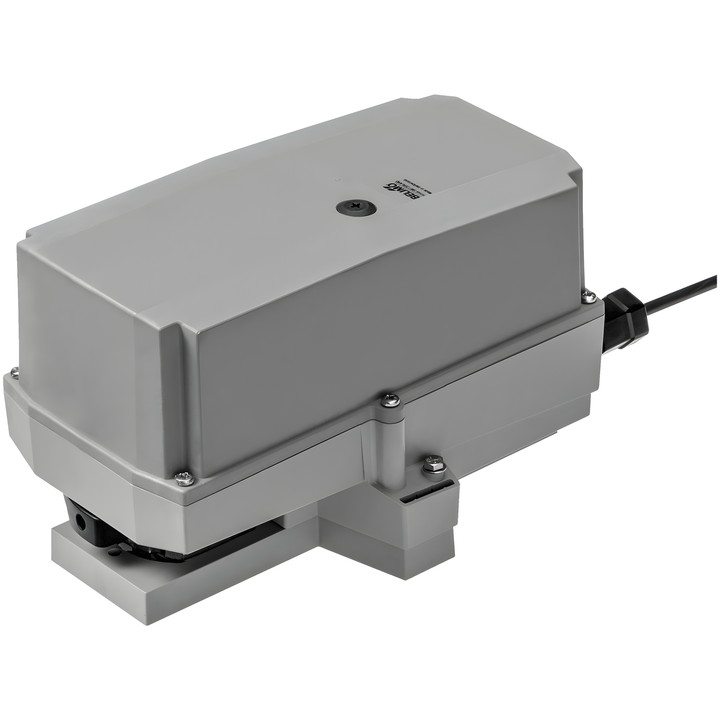

Belimo SR230P - rotary actuator for valves
Price:
zł1,443.36
VAT included
zł1,173.46 tax excluded
Belimo SR230P is a RobustLine rotary actuator for rotary valves. Torque 20 Nm, AC 100...240 V supply and Close/Open or 3-point control.
Running time is 90 s / 90°, and the IEC/EN protection rating is IP66/67.
Belimo SR230P rotary actuator
The RobustLine model is designed for rotary valves. It enables direct mounting on a ball valve using a single central screw.
Key features
- Torque: 20 Nm.
- Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
- Control: Close/Open, 3-point.
- Motor running time: 90 s / 90°.
- Power consumption during operation: 3 W; in standby: 0.6 W; for cable sizing: 7 VA.
- Power and control connection: 1 m cable, 3x 0.75 mm² (halogen-free).
- IEC/EN protection rating: IP66/67; NEMA/UL protection rating: NEMA 4X.
- Manual adjustment using a push button with locking option; housing cover must be removed.
- Mechanically adjustable rotation angle; standard setting: 0...90°. Mechanical, plug-in position indicator.
- Ambient temperature: -30...50°C.
-
Brand
-
ReferenceSR230P
-
EAN137630498114724
-
AC/DC voltageAC 100...240 V
-
Power consumption (running)3 W
-
Power consumption (holding)0.6 W
-
Rated power7 VA
-
Power supply control connectionCable 1 m, 3x 0.75 mm², FRNC (halogen-free)
-
Control typeOpen/close, 3-point
-
Protection ratingIP66/67
-
NEMA protection ratingNEMA 4X
-
Enclosure typeUL Enclosure Type 4X
