Belimo SR24P-MP-R - rotary actuator for valves

Belimo SR24P-MP-R - rotary actuator for valves

Belimo
zł2,355.33
VAT included
zł1,914.90 tax excluded

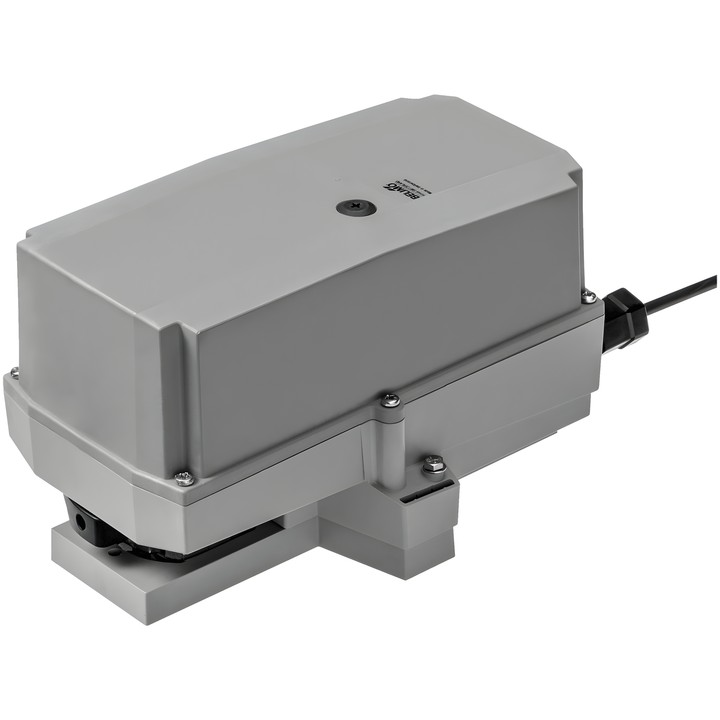

RobustLine rotary actuator for rotary valves and dampers in RetroFIT+ applications. Torque 20 Nm, AC/DC 24 V supply, 2...10 V modulating control and MP-Bus communication.

Motor running time is 90 s / 90° and can be set within 90...350 s. IEC/EN protection rating IP66/67.

Delivery in approx. 14 days
Share

Belimo SR24P-MP-R

RobustLine rotary actuator designed for rotary valves and dampers in RetroFIT+ applications. Supports the analogue control signal Y and communication via MP-Bus. In bus mode, connection U serves as the communication interface and does not provide an analogue measurement voltage.

Key features and specifications

  • Torque: 20 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Y operating range: 2...10 V; position feedback signal U: 2...10 V. Modulating control and MP-Bus communication.
  • Motor running time: 90 s / 90°; adjustable running time: 90...350 s.
  • Power consumption in operation: 3.5 W; at rest: 1.25 W; for wire sizing: 6 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm², halogen-free.
  • IEC/EN protection rating: IP66/67; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Connecting flange: F03/F04/F05. Mechanical angle-of-rotation limiters; standard setting 0...90°.
  • Manual override using a push button with locking option; mechanical position indicator.
  • Can connect a passive or active sensor or a switching contact and transmit its signal via MP-Bus.

Device parameters can be modified using Belimo Assistant 2. The shaft form-fit adapter is not supplied with the actuator.

  • Brand
    Belimo
  • Reference
    SR24P-MP-R
  • EAN13
    7630498122248

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.25 W
  • Rated power
    6 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    90 s / 90°
  • Variable motor running time
    90...350 s
  • Torque
    20 Nm

Techniczna karta katalogowa

Download (1.97MB)

Instrukcja montażu

Download (219.81KB)

Techniczna karta katalogowa – SR24P-MP-R

Download (1.97MB)

EU Declaration of Conformity – SR24P-MP-R

Download (32.79KB)

Environmental Declaration – SR..

Download (72.81KB)
