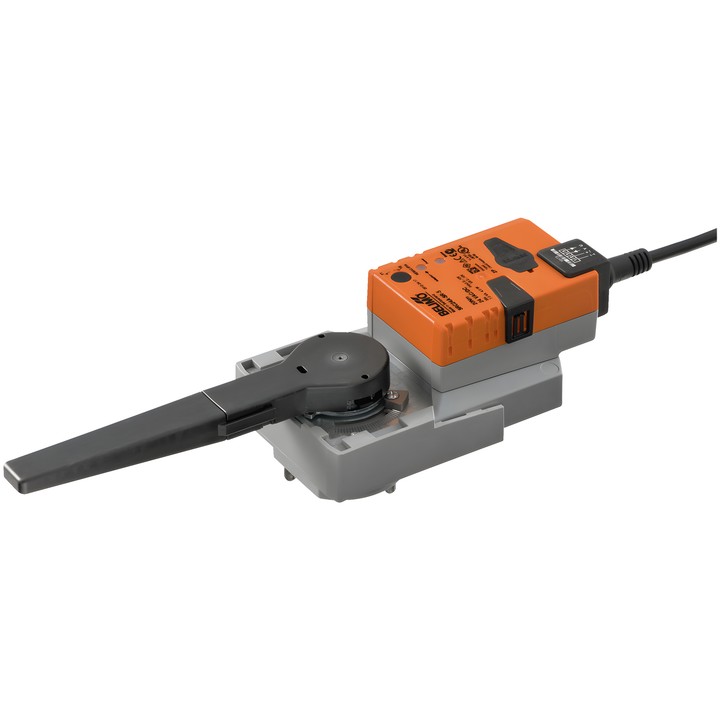

Belimo SRC24A-SR-5 - rotary actuator for valves

Name: Belimo SRC24A-SR-5 - rotary actuator for valves
Brand: Belimo
SKU: SRC24A-SR-5
Price: 1341.39 PLN
Availability: BackOrder

Belimo

zł1,341.39

VAT included

zł1,090.56 tax excluded

Rotary actuator for rotary valves and dampers. Torque 20 Nm, AC/DC 24 V supply, 2...10 V modulating control and 2...10 V position feedback signal.

Running time is 35 s / 90°. The actuator has mechanical rotation angle limit stops, a position indicator and push-button manual override.

Delivery in approx. 14 days

Belimo SRC24A-SR-5 – rotary actuator

Actuator designed for rotary valves and dampers. The Y control signal determines the actuator position, while the U feedback voltage is used for electrical indication of the valve position.

Key specifications and features

Torque: 20 Nm; running time: 35 s / 90°.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Modulating control: 2...10 V; position feedback signal: 2...10 V.
Power consumption during operation: 3.5 W; at rest: 1.5 W; for cable sizing: 6 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Push-button manual override with locking option; adjustable rotation angle with mechanical limit stops.
Mechanical position indicator; F05 connection flange.
IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
