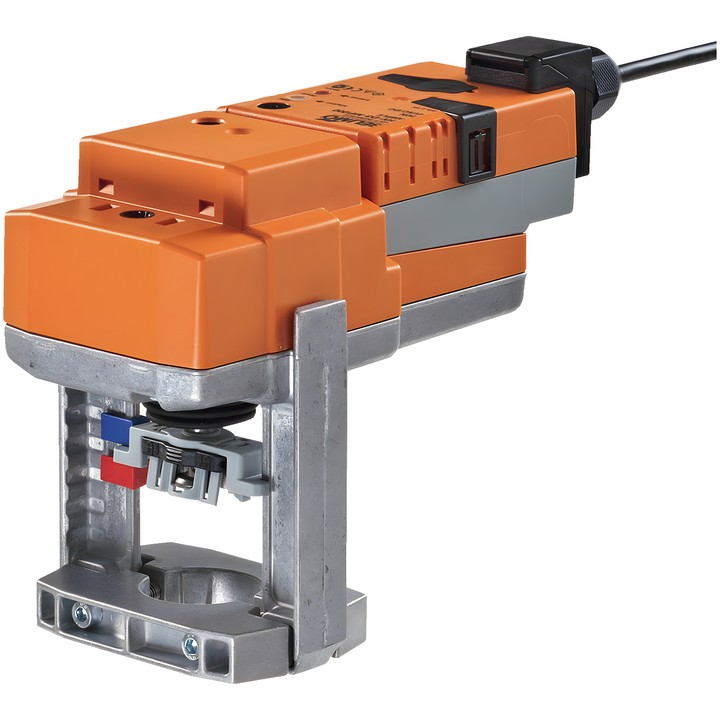

Belimo SV24A-MP-TPC - linear actuator for globe valves

Belimo SV24A-MP-TPC

Communicating actuator for 2-way and 3-way globe valves. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It enables conversion of the connected sensor signal for transmission via MP-Bus.

Key specifications and functions

• Motor positioning force: 1500 N; stroke: 20 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Power consumption during operation: 2 W; in standby position: 1.5 W; for cable sizing: 3.5 VA.
• Modulating, communicating control; Y operating range: 2...10 V; U feedback signal: 2...10 V.
• Communication: MP-Bus, max. 8 nodes.
• Motor running time: 150 s / 20 mm; adjustable running time: 90...150 s.
• Manual adjustment using a push-button, with locking option; stroke adaptation manually or automatically when the power is first switched on.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm², 4 mm² terminal.
• IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).

Device parameters can be modified using Belimo Assistant 2.
