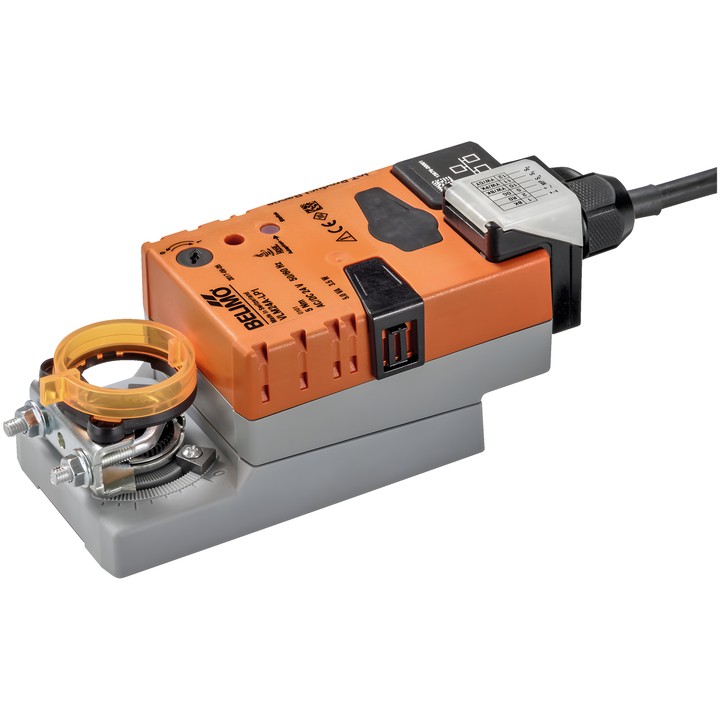

Belimo VLM24A-LP1 - rotary damper actuator

Name: Belimo VLM24A-LP1 - rotary damper actuator
Brand: Belimo
SKU: VLM24A-LP1
Price: 2637.80 PLN
Availability: BackOrder

Belimo

zł2,637.80

VAT included

zł2,144.55 tax excluded

Belimo VLM24A-LP1 rotary damper actuator, without spring return, with a torque of 5 Nm and AC/DC 24 V supply. Supports control via Cloud, BACnet/IP and Modbus TCP, as well as hybrid operation with an analogue control signal.

Motor running time is 150 s / 90°, and the protection rating is IP40. The mechanical connection is a universal clamp 6...20 mm.

Delivery in approx. 14 days

Belimo VLM24A-LP1 damper actuator

Rotary actuator without spring return for stationary heating, ventilation and air conditioning installations. According to the documentation, it is designed for air dampers with an area of up to approx. 1 m². It can be controlled via Cloud, BACnet/IP or Modbus TCP; in hybrid mode, it accepts an analogue control signal.

Key features and specifications

Torque: 5 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Y operating range: 2...10 V; variable Y operating range: 0.5...10 V.
Motor running time: 150 s / 90°; adjustable running time: 35...150 s.
Rotation angle: 95°, with the option of limiting it using mechanical stops on both sides.
Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP and integrated web server.
Can connect two sensors and process their signals for transmission to a higher-level system.
Manual adjustment using a push button with the option to lock it; direction of movement selected using a 0/1 switch.
Universal clamp 6...20 mm; 1 m power and control cable, 6x 0.5 mm²; RJ45 Ethernet socket.
Power consumption during movement: 3.5 W; in idle position: 3 W; power consumption for wire sizing: 5 VA.
IEC/EN protection rating: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
