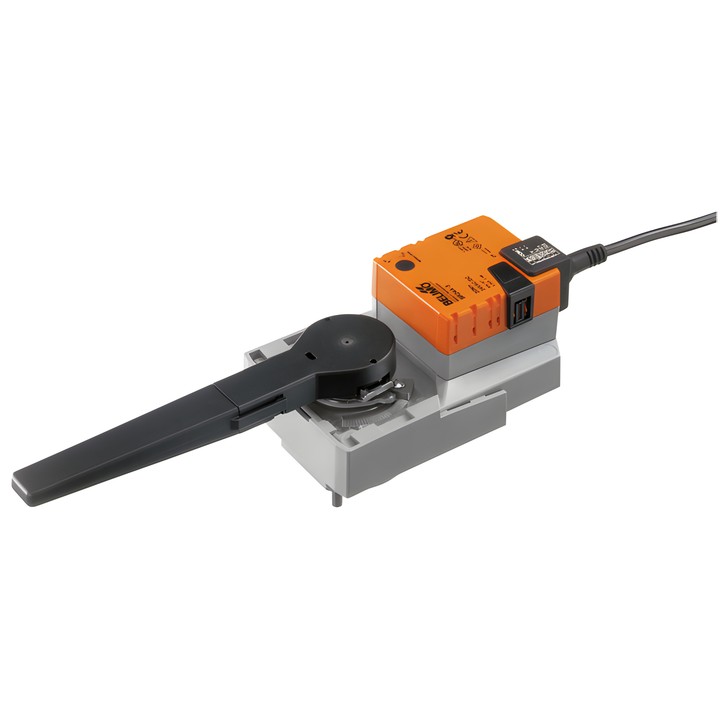

Belimo SR24A-SZ-5 - rotary actuator for valves

Name: Belimo SR24A-SZ-5 - rotary actuator for valves
Brand: Belimo
SKU: SR24A-SZ-5
Price: 1323.66 PLN
Availability: BackOrder

Belimo

zł1,323.66

VAT included

zł1,076.15 tax excluded

Rotary actuator for rotary valves and dampers, with a torque of 20 Nm and AC/DC 24 V power supply. Modulating control 0.5...10 V and position feedback signal 0.5...10 V.

Running time is 90 s / 90°. The actuator has an F05 mounting flange and IP54 protection rating.

Delivery in approx. 14 days

Belimo SR24A-SZ-5 – rotary actuator

Actuator designed for rotary valves and dampers. The Y control signal determines the actuator position, while the U feedback voltage enables electrical indication of the valve position.

Key technical data

Torque: 20 Nm; rated voltage: AC/DC 24 V.
Y control range: 0.5...10 V; U position feedback signal: 0.5...10 V.
Running time: 90 s / 90°; positioning accuracy: ±5%.
Power consumption during operation: 2.5 W; at rest: 0.4 W; wire sizing power: 5 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Mounting flange: F05; IEC/EN protection rating: IP54.
Manual adjustment by push-button with locking option; adjustable rotation angle with mechanical stops.
Mechanical, integrated, two-part position indicator.

Mounting on a rotary valve or damper is via the flange. The mounting position relative to the valve can be selected in 90° increments. The actuator is overload-protected and stops automatically when the stop is reached.
