Belimo AVK24A-MP-TPC - linear actuator for globe valves

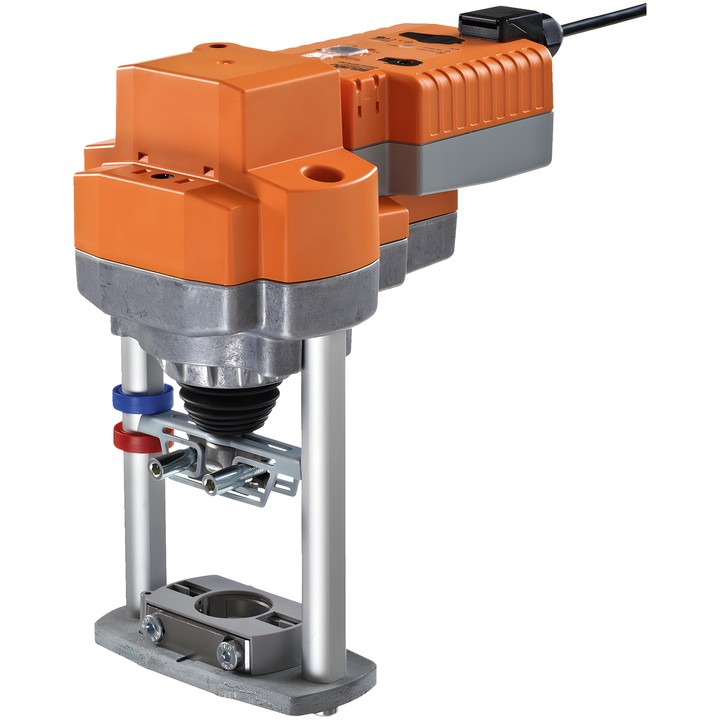

Belimo AVK24A-MP-TPC actuator

Communicating actuator for 2- and 3-way globe valves. In the event of a power failure, energy stored in the integrated capacitors moves the valve to the selected safety position, taking the set hold-up time into account.

Key features

• Actuator force: 2000 N; stroke: 32 mm.
• Rated voltage: AC/DC 24 V, 50/60 Hz.
• Power consumption: 5 W during operation and 2 W at rest; value for cable sizing: 9.5 VA.
• Modulating control: Y range 2...10 V; feedback signal U 2...10 V.
• Communication via MP-Bus; max. 8 MP-Bus nodes.
• Motor running time: 150 s / 32 mm, adjustable within 90...150 s; safety function running time: 35 s / 32 mm.
• Safety position: 0...100% of the stroke; hold-up time (PF): 2 s, adjustable within 0...10 s.
• Connected sensor signal can be converted and transmitted via MP-Bus.
• Manual adjustment using a button; operating range adaptation.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm², 4 mm² terminal.
• IEC/EN IP54 degree of protection; IEC/EN protection class III, SELV.
