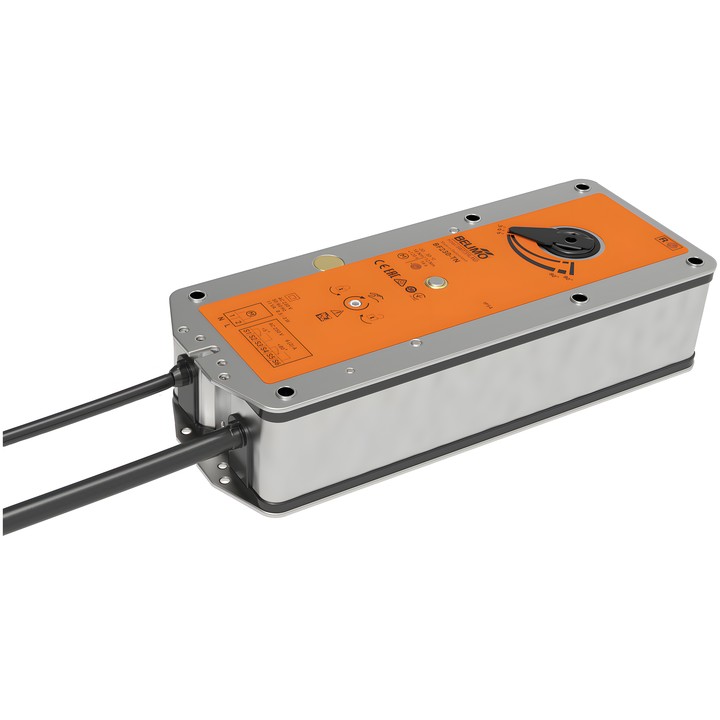

Belimo BF230/300 - spring-return actuator for fire dampers

Belimo BF230/300 – actuator for fire dampers

Spring-return actuator for 90° fire and smoke control dampers in ventilation and air-conditioning systems. During operation, the motor moves the damper to its operating position and tensions the return spring. An interruption to the power supply causes the spring to return the damper to the safety position.

Key features

• Rated voltage: AC 230 V, 50/60 Hz; Close/Open control.
• Motor torque: 18 Nm; safety function torque: 12 Nm.
• Motor running time: <120 s / 90°; safety function running time: 16 s @ 20°C.
• Rotation angle: max. 95°; motor direction of rotation selected by L/R mounting.
• Mechanical connection: form-fit connection 12x12 mm, non-through hollow shaft.
• Two auxiliary switches 2x SPDT with switching points at 5° / 80°; mechanical position indicator.
• Manual operation with position stop.
• Power consumption during movement: 8 W; at rest: 3 W; wire sizing power: 12.5 VA.
• Power and control connection: 3 m cable, 2x 0.75 mm²; auxiliary switch connection: 3 m cable, 6x 0.75 mm². Halogen-free cables.
• Degree of protection: IP54; IEC/EN protection class II, reinforced insulation.

Included: hand crank, indicator, protective cover and insert for 12/10 mm form-fit connection. The actuator is mounted on the damper by the fire damper manufacturer.
