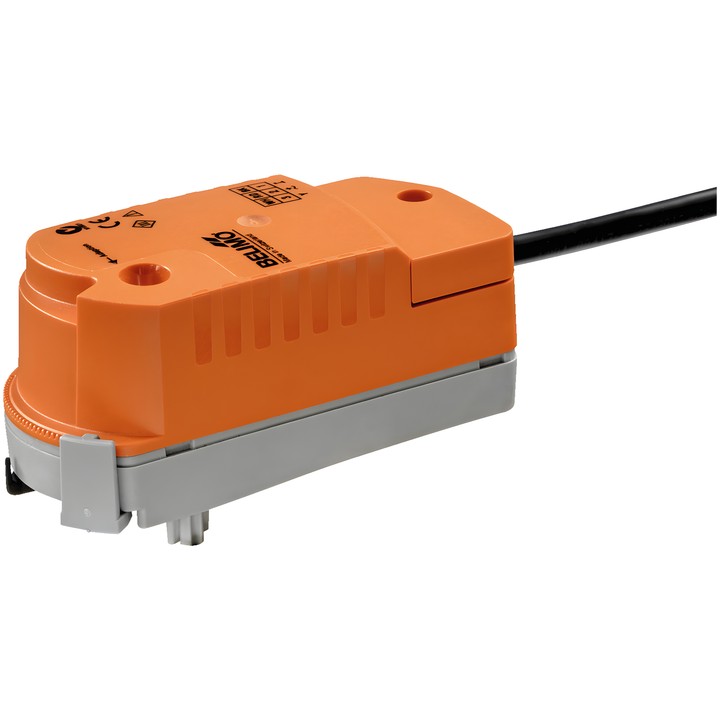

Belimo CQK24A-MPL - rotary actuator for zone valves

Name: Belimo CQK24A-MPL - rotary actuator for zone valves
Brand: Belimo
SKU: CQK24A-MPL
Price: 489.43 PLN
Availability: BackOrder

Belimo

zł489.43

VAT included

zł397.91 tax excluded

Communicating rotary actuator with safety function for zone valves. Torque 1 Nm, AC/DC 24 V supply and control via MP-Bus. In the event of a power failure, it moves to the closed position (NC).

Motor running time is 75 s / 90°, and safety function running time is 60 s / 90°.

Delivery in approx. 14 days

Belimo CQK24A-MPL

Rotary actuator for zone valves, digitally controlled via MP-Bus. The safety function moves the valve to the closed position after a power failure (NC).

Key features and specifications

Motor torque: 1 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Communication and control: MP-Bus.
Motor running time: 75 s / 90°; safety function running time: 60 s / 90°.
Power consumption during operation: 2 W; at rest: 0.5 W; for wire sizing: 3.5 VA.
Power and control connection: 1 m cable, 3x 0.34 mm².
Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
Snap-on mounting, mechanical position indicator and rotation angle adjustment using a clip in 2.5° increments.
Manual adjustment after disengaging the actuator.

The device does not support conventional control with a standard signal. Belimo Assistant 2 enables selected parameters to be changed.
