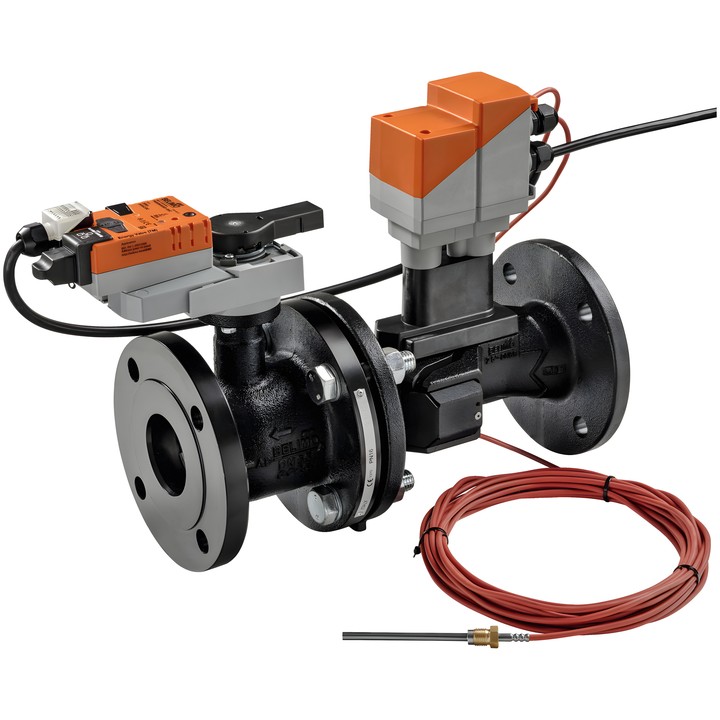

Belimo EV080F+BAC - 2-way Energy Valve control valve

Name: Belimo EV080F+BAC - 2-way Energy Valve control valve
Brand: Belimo
SKU: EV080F+BAC
Price: 17182.55 PLN
Availability: BackOrder

Belimo

zł17,182.55

VAT included

zł13,969.55 tax excluded

Belimo EV080F+BAC is a 2-way flanged Energy Valve control valve, DN 80, PN 16 and V'nom 11 l/s. It enables flow or power control based on sensor measurement and monitoring of power, energy and glycol concentration.

AC/DC 24 V supply; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV080F+BAC – Energy Valve DN 80

2-way control valve with an equal-percentage characteristic and sensor-based flow or power control. Designed for closed water systems and for water-side control in ventilation and heating systems.

Key features and specifications

Flanged connection; DN 80, PN 16; V'nom 11 l/s (39.6 m³/h).
V'max setting: 30...100% V'nom; ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Fluid: water or water with up to 50% vol. glycol; fluid temperature -10...120°C [14...248°F].
Supply AC/DC 24 V; power consumption 7 W during operation and 5 W in standby; 6 VA for cable sizing.
Control signal Y: 2...10 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.
Power and energy monitoring, glycol concentration monitoring and integrated Delta-T manager.
Built-in data logging for 13 months; configuration via the integrated web server or ZTH EU.
Manual override by push-button, with option to lock; 1 m connecting cable; IEC/EN IP40 protection rating.
