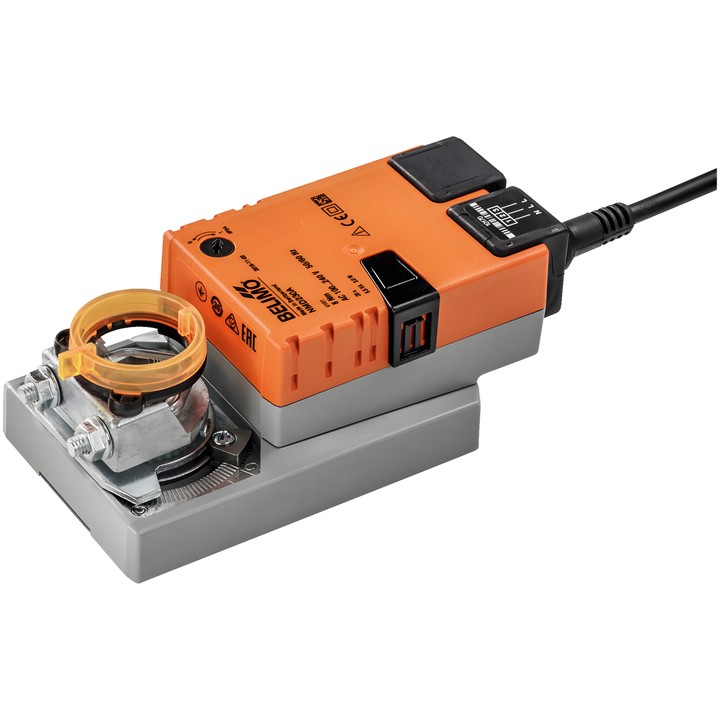

Belimo NMD230A - damper actuator

Belimo NMD230A - damper actuator

Belimo
zł971.53
VAT included
zł789.86 tax excluded

Belimo NMD230A damper actuator with 8 Nm torque, AC 100...240 V supply and 3-point Open/Close control. Motor running time is 20 s / 90°.

Equipped with a reversible universal mounting clamp for 10...20 mm, mechanical rotation angle limiters and manual override by pushbutton with locking option.

Delivery in approx. 14 days
Share

Belimo NMD230A – damper actuator

Actuator designed to position dampers in technical building systems. According to the technical data sheet, it can operate air dampers with an area of up to approx. 1.5 m².

Key features and parameters

  • Motor torque: 8 Nm.
  • Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Open/Close, 3-point.
  • Motor running time: 20 s / 90°.
  • Rotation angle: max. 95°; adjustable on both sides using mechanical limiters.
  • Direction of movement selected by switch 0 (rotation to the left) / 1 (rotation to the right).
  • Manual override by pushbutton with locking option; mechanical position indicator.
  • Mechanical connection: reversible universal mounting clamp for 10...20 mm.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Power consumption: 3 W while moving, 1 W at rest; sizing power for cables: 5.5 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NMD230A
  • EAN13
    7630498113260

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3 W
  • Power consumption (holding)
    1 W
  • Rated power
    5.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    20 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    8 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (536.22KB)

EU Declaration of Conformity – NMD230A

Download (32.49KB)

Environmental Declaration – NM..

Download (72.36KB)
