Belimo SM24A-S-TP - damper actuator

Belimo SM24A-S-TP - damper actuator

Belimo
zł821.43
VAT included
zł667.83 tax excluded

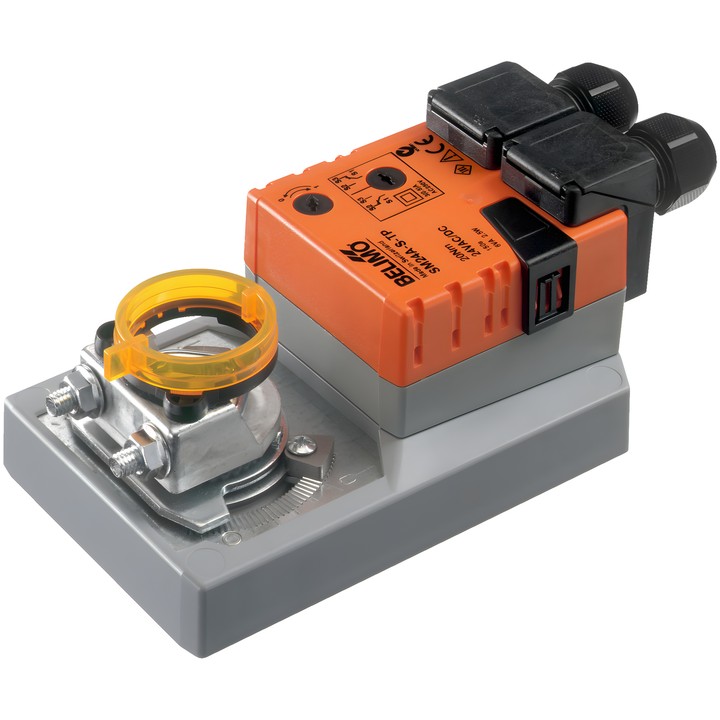

Belimo SM24A-S-TP damper actuator with a torque of 20 Nm, powered by AC/DC 24 V. Supports Close/Open or 3-point control; motor running time is 150 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch, connection terminals and a reversible universal mounting clamp 10...20 mm.

Delivery in approx. 14 days
Share

Belimo SM24A-S-TP – damper actuator

Rotary actuator designed to control air dampers in stationary heating, ventilation and air conditioning installations. Mounted directly on the damper shaft using a universal clamp.

Key features

  • Motor torque: 20 Nm.
  • Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 90°; angle of rotation: max. 95°.
  • Integrated, adjustable 1x SPDT auxiliary switch, 0...100%.
  • Direction of rotation selected using switch 0 (counterclockwise) / 1 (clockwise).
  • Manual override by push-button with locking option; angle of rotation adjusted using mechanical end stops.
  • Reversible universal mounting clamp 10...20 mm; mechanical position indicator.
  • Power and control connection, and auxiliary switch connection: 4 mm² terminals (cable ø4...10 mm, 3-core).
  • Power consumption during operation: 2 W; in idle position: 0.2 W; for cable sizing: 4 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM24A-S-TP
  • EAN13
    7630498114519

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    4 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (2.03MB)

Instrukcja montażu

Download (203.35KB)

Techniczna karta katalogowa – SM24A-S-TP

Download (2.03MB)

EU Declaration of Conformity – SM24A-S-TP

Download (32.79KB)

Environmental Declaration – SM..

Download (72.48KB)
