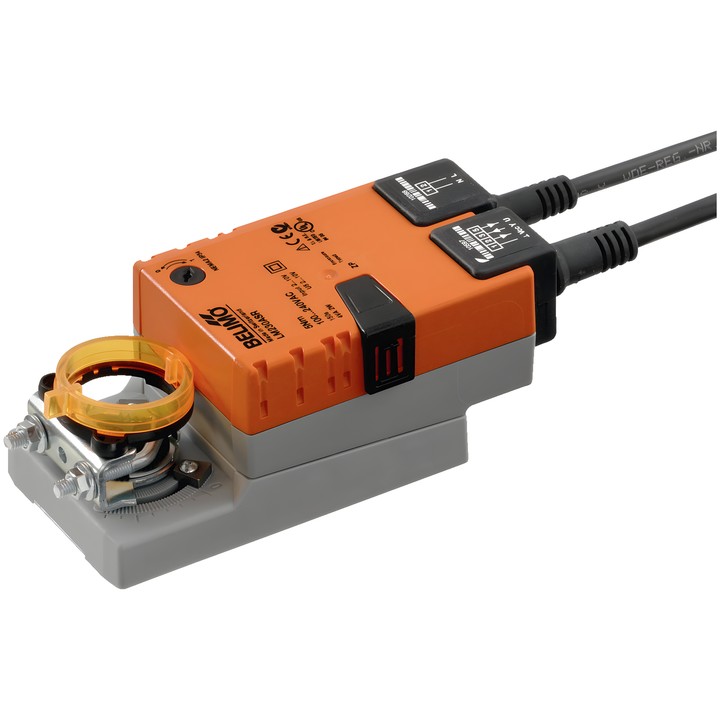

Belimo LM230ASR - rotary actuator for dampers

Belimo LM230ASR - rotary actuator for dampers

Belimo
zł743.94
VAT included
zł604.83 tax excluded

Belimo LM230ASR modulating actuator for dampers with a torque of 5 Nm. Power supply AC 100...240 V, control range 2...10 V and feedback signal 2...10 V.

Running time is 150 s / 90°. The actuator has a universal shaft clamp 6...20 mm and an IP54 protection rating.

Delivery in approx. 14 days
Share

Belimo LM230ASR

Rotary actuator for controlling dampers in building services systems. Controlled by a modulating signal, it provides a position feedback signal.

Key features and parameters

  • Torque: 5 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control range Y: 2...10 V; feedback U: 2...10 V.
  • Motor running time: 150 s / 90°; angle of rotation: Max. 95°.
  • Power consumption during operation: 2 W; at rest: 1 W; for wire sizing: 4 VA.
  • Direction of movement selected by 0/1 switch; manual adjustment with push button and locking option.
  • Universal shaft clamp 6...20 mm; mechanical rotation angle stops and position indicator.
  • Power connection: 1 m cable, 2x 0.75 mm²; control connection: 1 m cable, 4x 0.75 mm².
  • Protection rating IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM230ASR
  • EAN13
    7630498112195

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    4 VA
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Power connection
    Cable 1 m, 2x 0.75 mm²
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm
  • Control connection
    Cable 1 m, 4x 0.75 mm²

Techniczna karta katalogowa

Download (1.2MB)

Instrukcja montażu

Download (507.41KB)

EU Declaration of Conformity – LM230ASR

Download (32.76KB)

Environmental Declaration – LM..

Download (72.44KB)
