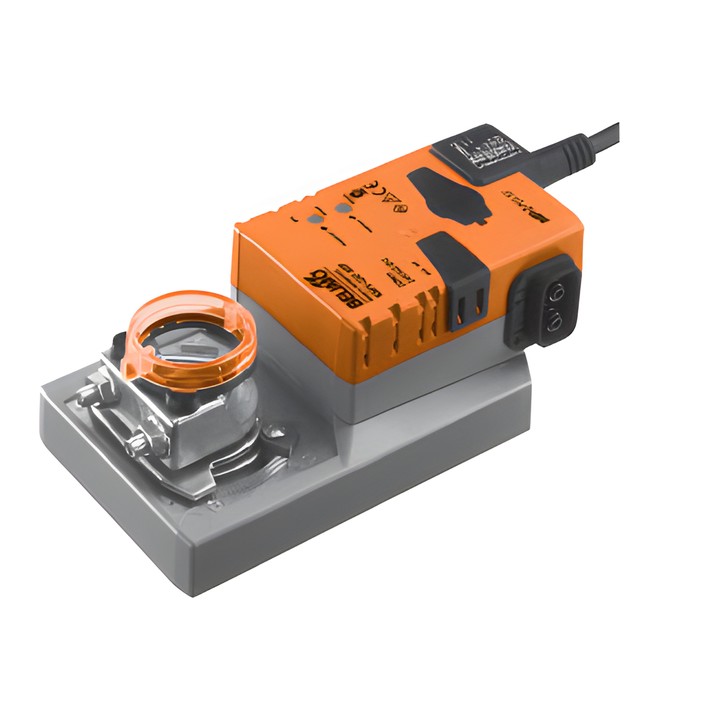

Belimo SMV-D3-MP - VAV-Compact flow controller with actuator

Belimo SMV-D3-MP – VAV-Compact device

SMV-D3-MP combines a VAV controller, a dynamic Belimo D3 differential pressure sensor and a damper actuator. It is used for pressure-independent control of VAV units in comfort applications. Available functions include VAV/CAV flow control and position control (Open Loop).

Key features and specifications

• Torque: 20 Nm; rotation angle: 95°.
• Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Communication: MP-Bus; communication and modulating control 0/2...10 V.
• Operating range Y: 2...10 V; adjustable range Y: 0...10 V; position feedback signal U: 2...10 V.
• Dynamic Belimo D3 flow sensor; differential pressure measuring range: 0...500 Pa.
• Adjustable flow values: V'max 20...100% V'nom and V'min 0...100% V'nom (<V'max).
• Manual adjustment by push button, with locking option; mechanical position indicator.
• Mechanical connection: universal clamp 10...20 mm; power and control connection: 1 m cable, 4x 0.75 mm².
• NFC interface and service socket; parameters can be modified using Belimo Assistant 2.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Protective Extra-Low Voltage (PELV).
• Ambient temperature: 0...50°C [32...122°F].

The device is factory-installed, adjusted and calibrated on the VAV unit by the VAV unit manufacturer.
