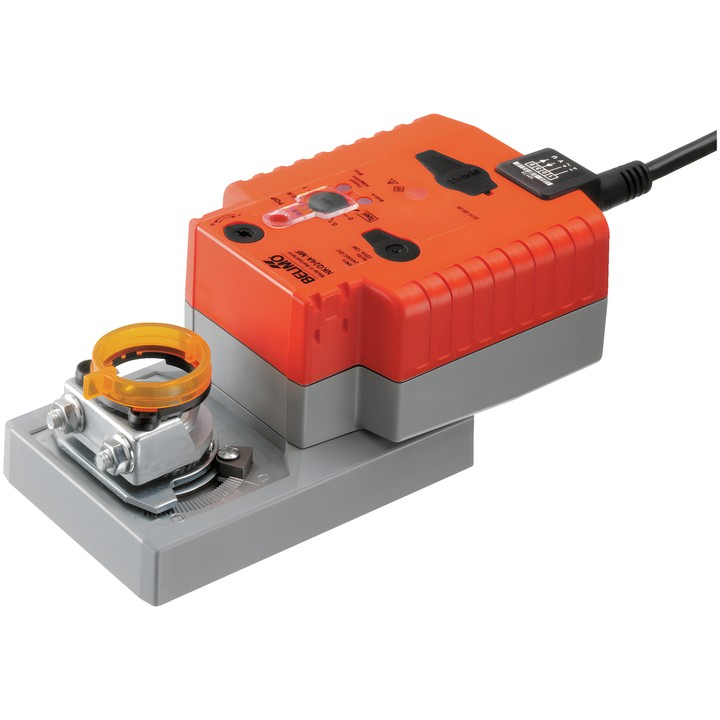

Belimo NKQ24A-MF - rotary actuator for dampers with fail-safe function

Belimo NKQ24A-MF - rotary actuator for dampers with fail-safe function

Belimo
zł2,329.96
VAT included
zł1,894.28 tax excluded

Belimo NKQ24A-MF rotary actuator for air dampers, with a fail-safe function provided by integrated capacitors. Torque 6 Nm, AC/DC 24 V supply and 2...10 V modulating control.

Motor running time is 4 s / 90° and can be adjusted within 4...20 s. Fail-safe function running time is 4 s / 90°.

Delivery in approx. 14 days
Share

Belimo NKQ24A-MF – actuator for air dampers

Configurable rotary actuator for controlling dampers in technical building systems. When the power supply is interrupted, it uses the energy stored in its capacitors to move the damper to the configured fail-safe position.

Key features and parameters

  • Motor torque: 6 Nm; air damper size up to approx. 1.2 m².
  • Rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V. Signal ranges are configurable.
  • Motor running time: 4 s / 90°; adjustable motor running time: 4...20 s. Fail-safe function running time: 4 s / 90°.
  • Fail-safe position adjustable from 0...100% in 10% increments; hold time (PF) adjustable within 0...5 s.
  • Rotation angle: max. 95°; can be limited by mechanical stops, with a minimum permitted angle of 30°.
  • Manual override by push-button and mechanical position indicator.
  • Universal shaft clamp for 8...26.7 mm shafts; power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption: 11 W during operation, 3 W at rest; power rating for cable sizing: 22 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Parameters can be configured using Belimo Assistant 2 or ZTH EU. At initial power-up, the actuator adapts to the mechanical range of movement.

  • Brand
    Belimo
  • Reference
    NKQ24A-MF
  • EAN13
    7630498121166

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    11 W
  • Power consumption (holding)
    3 W
  • Rated power
    22 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using the button
  • Running time (motor)
    4 s / 90°
  • Running time (safety function)
    4 s
  • Variable motor running time
    4...20 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    6 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm
  • Direction of rotation (safety function)
    Selectable via switch 0...100%
