Belimo NF24A-MP - rotary actuator for dampers with fail-safe function

Belimo NF24A-MP - rotary actuator for dampers with fail-safe function

Belimo
zł1,308.71
VAT included
zł1,063.99 tax excluded

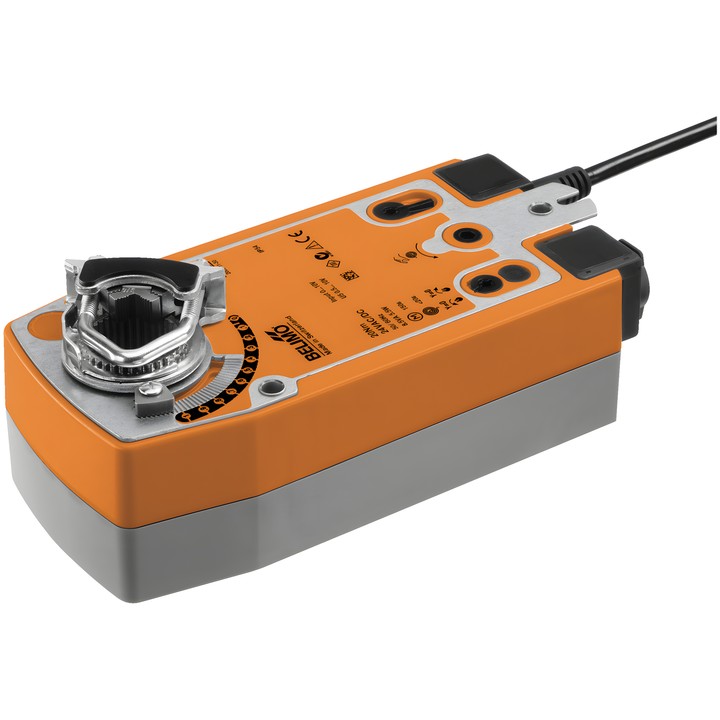

Belimo NF24A-MP is a communicative rotary actuator for dampers with a fail-safe function. Torque is 10 Nm, supply voltage is AC/DC 24 V, and communication is via MP-Bus.

The actuator supports 2...10 V modulating control. Motor running time is 150 s / 90°, and the degree of protection is IP54.

Delivery in approx. 14 days
Share

Belimo NF24A-MP – actuator for dampers

A communicative rotary actuator with a fail-safe function for controlling dampers in technical building systems. It can operate with an analogue control signal or receive a digital signal via MP-Bus. In analogue mode, feedback signal U indicates the damper position; during bus operation, connection U is used for communication and does not provide an analogue measuring voltage.

Key features and specifications

  • Torque of the motor and fail-safe function: 10 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; operating range Y: 2...10 V, feedback signal U: 2...10 V; communication via MP-Bus.
  • Can connect a passive or active sensor, or a switching contact, and transmit its signal via MP-Bus.
  • Motor running time: 150 s / 90°; adjustable running time: 40...150 s.
  • Fail-safe function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: Max. 95°; adjustment by mechanical stops.
  • Manual adjustment using a crank and locking switch; mechanical position indicator.
  • Universal clamp for shaft 10...25.4 mm.
  • Power consumption during operation: 7 W; in standby position: 3.5 W; for cable sizing: 9.5 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NF24A-MP
  • EAN13
    7630498112829

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    7 W
  • Power consumption (holding)
    3.5 W
  • Rated power
    9.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Variable motor running time
    40...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...25.4 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (2.17MB)

Instrukcja montażu

Download (1.64MB)

Techniczna karta katalogowa – NF24A-MP

Download (2.18MB)

EU Declaration of Conformity – NF24A-MP

Download (32.53KB)

Environmental Declaration – NF..

Download (72.31KB)
